Speedway 1947-54 Chevy Half-Ton Pickup Truck Chassis Kit
Speedway 1947-54 Chevy Half-Ton Pickup Truck Chassis Kit

Speedway 1947-54 Chevy Half-Ton Pickup Truck Chassis Kit

1 Review | 4 Answered Questions
In Stock
Speedway 1947-54 Chevy Half-Ton Pickup Truck Chassis Kit
Image Gallery
Speedway 1947-54 Chevy Half-Ton Pickup Truck Chassis Kit
Speedway 1947-54 Chevy Half-Ton Pickup Truck Chassis Kit
Zoomed In Image
Part # 9161947
Save 5%
$3,999.99
$4,249.93
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Articles

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Info

As featured on Classic Truck’s Week to Wicked. Watch the transformation here!

Build a firm foundation for your vintage 1/2 ton Chevy pickup without picking up a welder! This innovative line of chassis components from Speedway Motors allows the do-it-yourself rodder to assemble a complete '47-'54 Chevy pickup frame using only basic hand tools and a drill.

This triangulated four bar rear suspension will greatly improve both the ride quality and handling of your Chevy.

  • for 1/2 ton chassis
  • 60" wide 9” rearend housing with welded suspension brackets
  • Chromoly four bars with urethane bushings
  • Bolt-on frame brackets and shock crossmember
  • 11” steel-bodied coil-over shocks

910-04754 Instructions (PDF)

Frame rail features include:

  • Laser cut from 7-gauge steel plate
  • Replicates shape and dimensions of original Chevy frame
  • Welded on a rail fixture to ensure proper shape
  • Ground and sanded to prep for finishing
  • For '47-'54 1/2 pickups

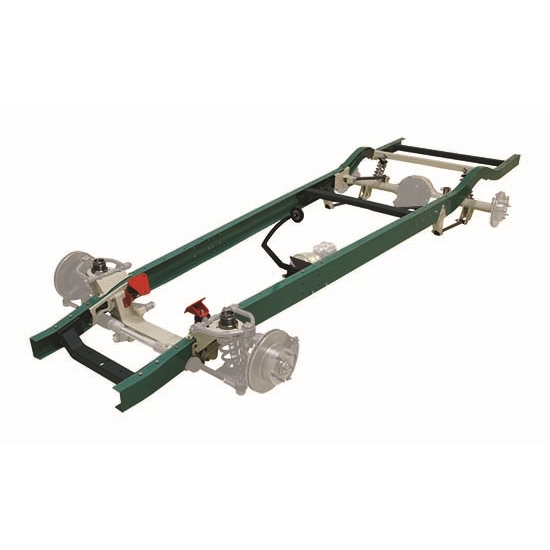

NOTE: Finish will be plain steel, not powder coated as shown. Third member, axle shafts, front suspension components, and rear disc brake kit are shown in the photo for reference only, but are not included as part of this kit and are available separately.

Related Products

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • 1947-1954 Chevy 1/2 Ton Pickup Truck Frame Rails
    Qty x 1
  • Radiator Support Brace for 1947-54 Chevy Pickup
    Qty x 1
  • Bolt-In 1947-54 Chevy Pickup Mustang II Crossmember
    Qty x 1
  • 1947-54 Chevy Pickup Motor Mounts for Bolt-In IFS
    Qty x 1
  • Bolt-In 1947-54 Chevy Pickup Center Chassis Crossmember
    Qty x 1
  • Rear Fuel Tank Brace for 1947-54 Chevy Pickup Truck
    Qty x 1
  • AFCO 23250CR 10 Inch Extreme Chrome Coil-Over Spring, 250 Rate
    Qty x 2
  • QA1 US402 Adjustable Shock and Coilover Kit w/o Spring, 12 Inch
    Qty x 2
  • 1947-54 4-Link 9 Inch Housing with Brackets
    Qty x 1
  • 1947-54 4-Link Chassis Bracket, Left
    Qty x 1
  • 1947-54 4-Link Chassis Bracket, Right
    Qty x 1
  • Upper Link 4-Bar, '47-'54
    Qty x 2
  • Lower Link 4-Bar, '47-'54
    Qty x 2
  • Shock Mount Crossmember
    Qty x 1
  • Front Lower Left Bracket 4-Link
    Qty x 1
  • Front Lower Right Bracket 4-Link
    Qty x 1
  • 1947-1954 1/2 Ton Chevy/GMC Pickup Power Brake Pedal Assembly
    Qty x 1
  • Hardware Kit 4-Bar, '47-'54
    Qty x 1
