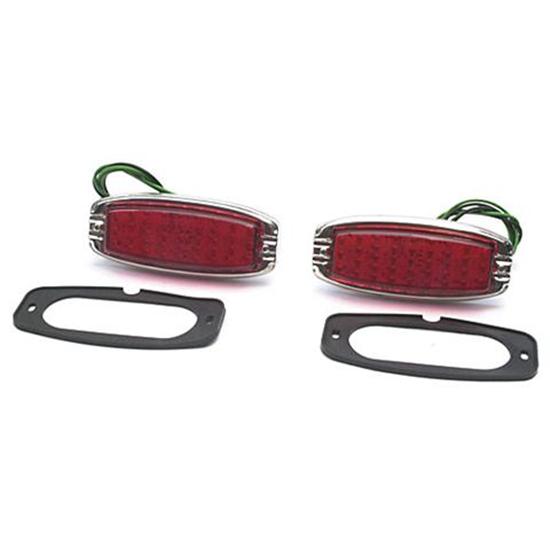

1941-1948 Chevy LED Tail Light Assembly

1941-1948 Chevy LED Tail Light Assembly
1941-1948 Chevy LED Tail Light Assembly
1941-1948 Chevy LED Tail Light Assembly

Click image to enlarge

Please note the following about this product:

  • This item is sold as a pair.

Details

Reviews (7)

Q & A (3)

What's in the Box

Info

These powerful bright red LED tail lights are an excellent replacement or addition to your 1941-1948 Chevy passenger car.

  • 39 Super Bright Red LED's
  • Polycarbonate Lens
  • Polished stainless steel housing
  • Epoxy coated, fully sealed electronics
  • Solid state circuit board for 12V systems


1941-1948 Chevy LED Tail Light Installation Instructions (pdf)

Specs

  • Length:  5-7/8"
  • Width:  2-1/2"
  • Curved back (not flat)
  • Requires 3-1/2" x 1-5/8" hole for the bucket
  • Wiring Guide:
    • Black - Taillight
    • Green - Stop/Turn
    • Housing - Ground

Customer Reviews

Rated 4.7 out of 5 by 7 reviewers.
RATING BREAKDOWN
7 reviews
5 Stars
5
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0
RECOMMEND THIS PRODUCT:

Sawdust
Verified Purchaser
Verified Reviewer
Cary, NC

LED tail lights worked very well

August 18, 2015
Worked well with turn signals
Pros:
  • Easy To Install
  • Very bright
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

kicks
Verified Purchaser
wantagh ,ny

super product

August 11, 2015
great product,great price
Pros:
  • Ease Of Installaion
  • Great Safety Feature
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Soft48
Verified Purchaser
Oregon

Surprisingly bright, great fit.

March 14, 2015
I drive a 1948 Chevy daily, all seasons. I have been following aftermarket automotive LED lighting, but generally very disappointed with most products. Not bright enough to beat the higher watt incandescent bulbs. This tail light is really an exception. It was a direct fit to the body. Make sure you have a good ground to the housing, as there is no ground wire. The notes are misleading on this. It has a low (tail light) wire and the bright (brake/turn) wire. The brightness seems about 50% greater than the high output incandescent bulb. Color is lighter red. Not orange, but not the deep red of the original glass lens. I really like this LED replacement. I also bought a LED headlight made by GE. This is also amazing bright and very well focused. They did a great job controlling the light to the road area. No glare to opposing traffic, but as bright as HID. Speedway should offer these headlights. They fit my 48 Chevy with no modification. Uses the same connection and same mounting ring. GE Nighthawk Sealed Beam Replacement Headlamp LED Lamp 7 Inch Round. They are expensive, but amazing improvement.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

RacerRich
New Jersey, USA

These LED lights are BRIGHT.

January 19, 2013
These taillights were on my Christmas list. The taillights were to replace the normal incandescent 41'-48' taillights on my 32 Deuce. The reason I went to LED was a safety issue. I had too many close calls with other drivers not paying attention to the dim incandescent lights and checking out the deuce and not paying attention. Needless to say you do not want to get rear ended in a car with the gas tank behind a spreader bar! With these new LED lights, they have the looks of my old 41'-48' taillights with the safety of modern super bright lights. I mean these lights are extremely bright!
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Jack
Verified Purchaser
Lawrenceburg, TN

Great Lights

July 02, 2012
After installation, one side was brighter that the other. I contacted Speedway Support and with days they shipped me a new set. These appear to be working correctly, very bright which is what I was looking for on the back of my '32 Coupe.
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

norm
Verified Purchaser
south dakota

48 chvy led taillights

March 17, 2012
I got my stuff in 24 hours after I ordered it,wow, that's fast.
Pros:
  • Can Withstand Use
  • Powerful
Full Size Image

Was this review helpful? 0 0

hillguy
Verified Purchaser
isle,mn.

very nice assy.

February 11, 2011
nice assy. could be little shorter in depth.[...]
Pros:
  • Can Withstand Use
  • Powerful
  • Reliable
Yes, I recommend this product.
Full Size Image

Was this review helpful? 0 0

Page 1 of 1

Product Q&A

3 questions : 4 answers

2 answers

Do the LED lights require a special flasher, or will my original 12v flasher work?

Dave
Asheboro,NC
September 03, 2011

Do the LED lights require a special flasher, or will my original 12v flasher work?

Answers

March 15, 2015
Soft48
Yes. Go to the auto pars store and buy a flasher compatible with LED. The new ones work great with mixed bulb types. I was using this before I bought the LED tail lights.
September 07, 2011
John
LED lights feature minimal current draw and in an ALL LED system will require either an LED timed flasher or the use of “Load Equalizers” or “Dummy Loads” to simulate current draw when using the original style flashers. If you have a regular bulb in the system it may draw enough current to activate the standard flasher and if not we offer the LED flashers in 2 or 3 prong and also the dummy loads under part number 91003030.
1 answers

Which bulbs do these use? You have two on your site that are 1157 type. One is 1" the other 1 3/4". Does this assembly come with one of these? If so, will the other one fit as well?

MIke
Texas
August 01, 2015

Which bulbs do these use? You have two on your site that are 1157 type. One is 1" the other 1 3/4". Does this assembly come with one of these? If so, will the other one fit as well?

Answers

August 03, 2015
Zach
Expert
The LED's in the 91137043 light's are incorperated into the unit and as a result are not replaceable. I believe the 1" and 1 3/4" you are refering to are LED repalcements for incandescent bulbs in the original light units.
1 answers

So, just to be clear, when one of the bulbs goes bad, I have to order a completely new unit?

Mike
Texas
August 04, 2015

So, just to be clear, when one of the bulbs goes bad, I have to order a completely new unit?

Answers

August 05, 2015
Eric
Expert
Yes that is the nature of LED lights. LED lights have a circuit board and the entire light would need replaced. LED's have an extremely long service life. For most hot rods that see limited mileage it would be fairly uncommon to ever have to replace an LED light on one.
