#120XD778012

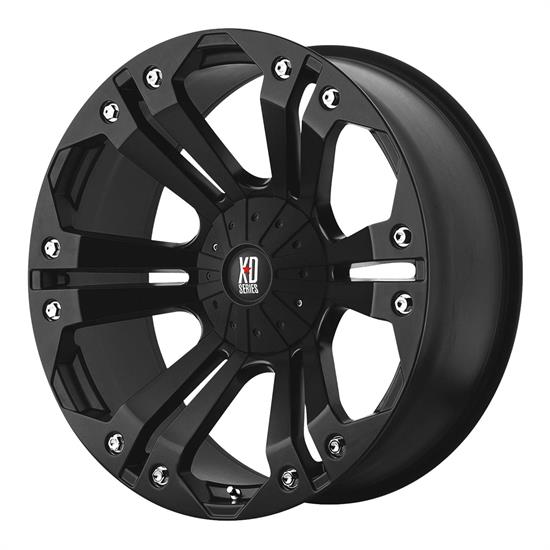

XD XD77829035718 Monster Series Wheel, 20 x 9
$402.00
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 11th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
20 Inch Wheel Diameter, 9" Width, 5.71" Wheel Backspace
See more details
Key Specs
| Bolt Pattern | 5 on 5" | 5.5" |
| Wheel Diameter | 20 Inch |
| Wheel Material Type | Cast Aluminum |
| Width | 9" |
| Wheel Bolt Pattern (in.) | 5x5 in. | 5x5.5 in. |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyXD XD77829035718 Details
XD XD77829035718 Details
Designed and built to handle even the toughest of conditions - XD Series Wheels were born to serve you in the most extreme environments, bred to withstand the rigors of the Baja 1000. Extreme-duty designs and materials to put up with your rough and tough life style, whether on road or off the beaten path. XD Series Wheels are race-tested and strong enough to endure any of your wildest adventures!
- Features a Matte Finish
- Wheel diameter of 20 inches with a width of 9 inches
- Made from Cast Aluminum
- 1-year warranty on wheel finish
Guides & Documents
XD XD77829035718 Specifications
XD XD77829035718 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | XD77829035718 |
| Brand | XD |
| Bolt Pattern | 5 on 5" | 5.5" |
| Wheel Diameter | 20 Inch |
| Wheel Material Type | Cast Aluminum |
| Width | 9" |
| Wheel Bolt Pattern (in.) | 5x5 in. | 5x5.5 in. |
| Wheel Bolt Pattern (mm) | 5x127 mm | 5x139.7 mm |
| Wheel Backspace | 5.71" |
| Wheel Offset | 18 mm |
| Wheel Backspace Range | 5.500" - 5.999" |
| Finish | Matte |
| Color | Black |
| Beadlock Included | No |
| GENERAL | |
| DOT-Approved | Yes |
| Offset | 18 mm |
| Weight | 35 lbs. |
| Load Capacity | 2500 lbs. |
| Notes | Matte Black |
| Valve Stem Included | No |
| GTIN Code | 843962044671 |
| Lug Nut Seat Style | 60 Degree Conical |
| Center Cap Included | Yes |
| Warranty | 1-year on wheel finish |
| Lug Nuts Included | No |
| Material Type | Cast Aluminum |
