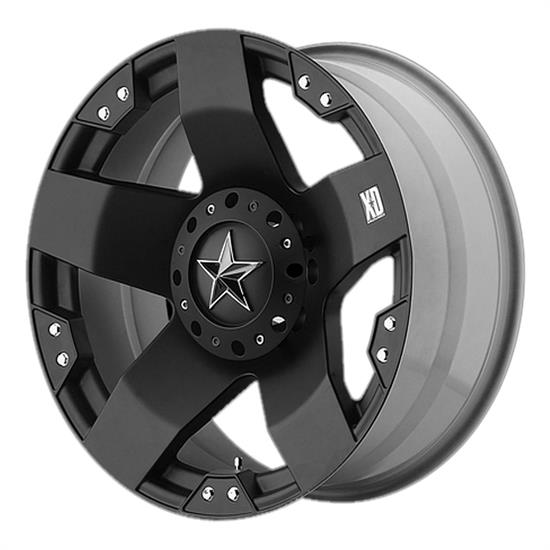

Designed and built to handle even the toughest of conditions - XD Series Wheels were born to serve you in the most extreme environments, bred to withstand the rigors of the Baja 1000. Extreme-duty designs and materials to put up with your rough and tough life style, whether on road or off the beaten path. XD Series Wheels are race-tested and strong enough to endure any of your wildest adventures!

Features a Matte Finish
Wheel diameter of 20 inches with a width of 8.5 inches
Made from Cast Aluminum
1-year warranty on wheel finish

Guides & Documents

How To Measure Wheel Bolt Pattern

Wheel Lug Nut Size Guide + Torque Spec Chart

Wheel Offset vs Backspacing Explained

CA Prop 65

XD XD77528567310 Specifications

KEY SPECS
MFG. Part #	XD77528567310
Brand	XD
Wheel Diameter	20 Inch
Width	8.5"
Wheel Bolt Pattern (in.)	6x5.5 in.
Wheel Bolt Pattern (mm)	6x135 mm \| 6x139.7 mm
Wheel Backspace	5.14"
Wheel Material Type	Cast Aluminum
Wheel Offset	10 mm
Wheel Backspace Range	5.000" - 5.499"
Finish	Matte
Color	Black
Beadlock Included	No
Material Type	Cast Aluminum
Bolt Pattern	6 on 135mm \| 5.5"

GENERAL
DOT-Approved	Yes
Weight	34 lbs.
Load Capacity	2500 lbs.
Notes	Matte Black
Valve Stem Included	No
GTIN Code	843962067960
Lug Nut Seat Style	60 Degree Conical
Center Cap Included	Yes
Warranty	1-year on wheel finish
Lug Nuts Included	No
Offset	10"
