Winters Performance SR2525 SR8207 SR2980 56 Inch Quickchange, Polished
Winters Performance SR2525 SR8207 SR2980 56 Inch Quickchange, Polished

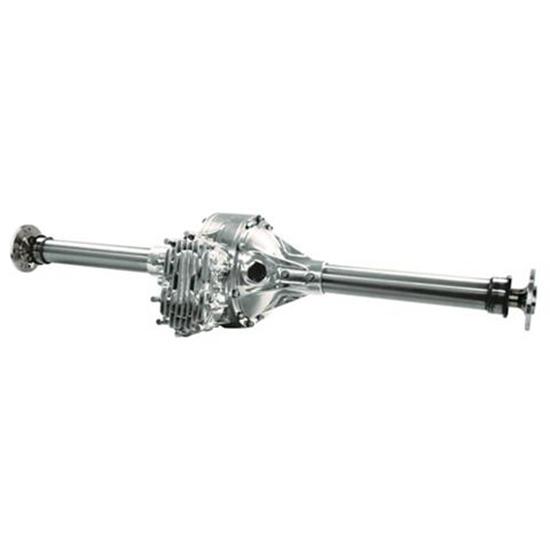

Winters Quick Change, Rear Position, Semi-Floating Axle Type, 56" Overall Width, Polished
On Backorder
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Winters Performance SR2525 SR8207 SR2980 56 Inch Quickchange, Polished
X
Part # 8022520P
$3,649.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
- Housing ends are standard 3.15" big Ford
- Axles are drilled for both 5 on 4-1/2" and 5 on 4-3/4" bolt patterns
- Measures 56" from axle flange to axle flange
- Features a 31-spline Winters Track posi differential, and a 4.12:1 ring and pinion
- Kit includes a standard driveshaft yoke and a heat treated lower shaft
Details
Position:
Rear
Axle Type:
Semi-Floating
Overall Width:
56"
Differential Included:
Yes
Differential Type:
Limited Slip
Gear Ratio:
4.12:1
Finish:
Polished
Axle Splines:
31
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Sold in Quantity:
Kit
MFG. Part #:
SR2525 SR8207 SR2980
Seals Included:
Yes
Rotors Included:
No
Info
Winter's Championship rear end is available with either plain or fully polished housing, six-rib side bells and standard rear cover. Features a standard driveshaft yoke, heat treated lower shaft, 31-spline Winters Track posi differential, and a 4.12:1 ring and pinion.
Housing ends are standard 3.15" big Ford and include 2.5" offset axles. Axles drilled for both 5 on 4-1/2" and 5 on 4-3/4" bolt patterns. Measures 56" from axle flange to axle flange and requires our part #91711 10-spline quick change gears.
THIS ITEM SHIPS TRUCK FREIGHT
Some parts are not legal for use in California or other states with similar laws/regulations
