Product Summary

Winters Quick Change, Rear Position, 56" Overall Width

  • Available with either plain or fully polished housing
  • Features a six-rib side bells and standard rear cover
  • Lower shaft is fully heat treated for added strength
  • 12:1 ring and pinion gear ratio
  • Gear ring sizes measure 10"

Key Specs

BrandWinters
PositionRear
Axle TypeSemi-Floating

Need To Know

Truck Ship

Truck shipments must be pre-paid with a credit card, certified check or money order

Quick and Easy Returns

Details

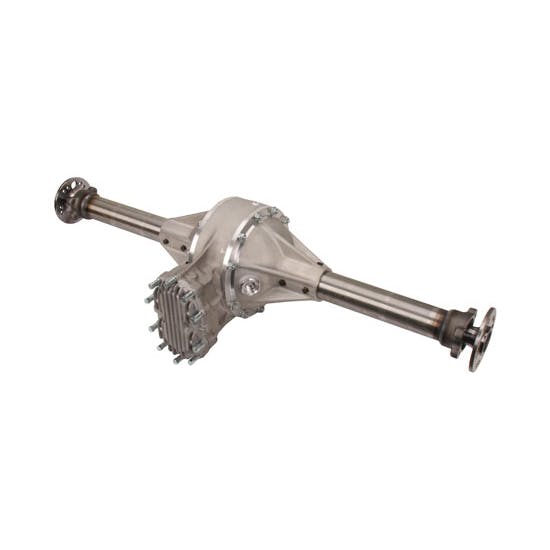

Winter's Championship rear end is available with either plain or fully polished housing, six-rib side bells and standard rear cover. Features a standard driveshaft yoke, heat treated lower shaft, 31-spline Winters Track posi differential, and a 4.12:1 ring and pinion.

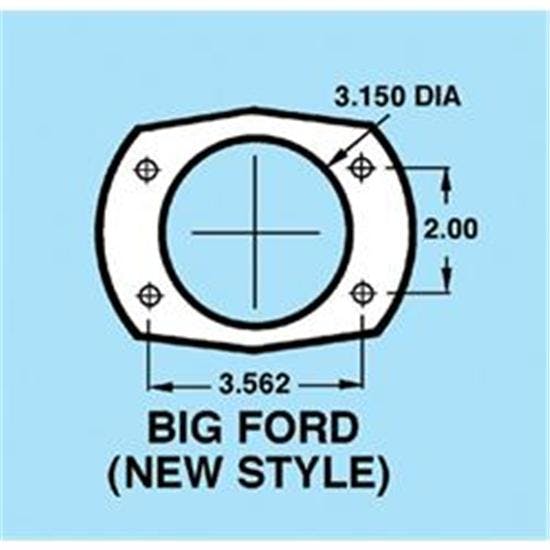

Housing ends are standard 3.15" big Ford and include 2.5" offset axles. Axles drilled for both 5 on 4-1/2" and 5 on 4-3/4" bolt patterns. Measures 56" from axle flange to axle flange and requires our part # 80285 10-spline quick change gears.

THIS ITEM SHIPS TRUCK FREIGHT

Specifications

KEY SPECS
BrandWinters
PositionRear
Axle TypeSemi-Floating
GENERAL
Overall Width56"
Differential IncludedYes
Differential TypeLimited Slip
Gear Ratio4.12:1
Ring Gear Size10 Inch
Axle Splines31
Bolt PatternDual: 5 on 4.5" | 4.75"
Sold in QuantityKit
NotesRear-end is capable of handling 1000 Horse power & 1000 ft.lbs. of torque and has a 10" ring gear.
