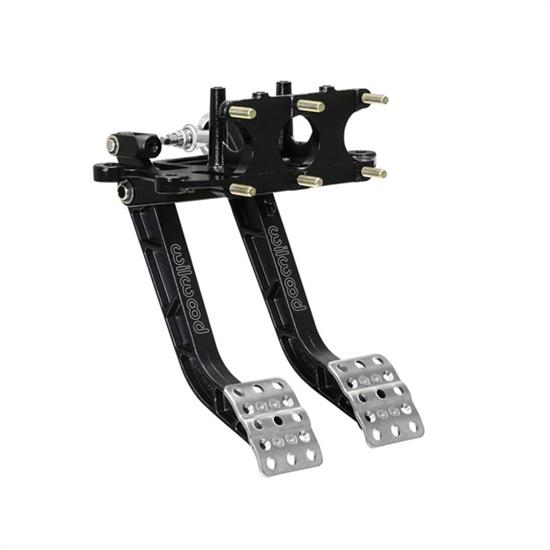

Wilwood Tru-Bar 340-15073 Reverse Mount Pedal Assembly, Black
Universal Fit, Firewall Position, Reverse Master Cylinder Mount Type, Aluminum, EDP Coated
- Now available in a Reverse Swing mount pedal with a 5:1 ratio
- The pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments
- Engineered to provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles
- It uses the same chassis and master cylinder mounting as all Wilwood balance bar style pedals
- The Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections
Wilwood’s Tru-Bar balance bar system is now available in a Reverse Swing mount pedal with a 5:1 ratio. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments. They provide ultimate precision, control, and adjustment of the brake bias on race prepped vehicles. The new Tru-Bar pedals utilize the same chassis and master cylinder mounting as all Wilwood balance bar style pedals. A stronger and larger diameter 7/16-20 bar provides quicker adjustment and features a shouldered 3/8” diameter end to attach the standard remote adjuster cable to deliver professional, championship caliber performance. Wilwood’s Tru-Bar balance bar utilizes a fixed trunnion bearing in the pedal arm with spherical rod ends at the pushrod connections. It provides the ultimate in precision bias adjustment, control, and fine tuning on race prepped vehicles equipped with twin brake Master cylinder systems and proportionately sized calipers.
- Aluminum Construction
- Black E-Coat Finish
- Reverse Mount Facing
- This item ships directly from the manufacturer. It may take an additional 15 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
