Wilwood Midget Inboard Brake Kit - 10.50 Inch Rotor
Wilwood Midget Inboard Brake Kit - 10.50 Inch Rotor

Wilwood Midget Inboard Brake Kit - 10.50 Inch Rotor

Rear Position, 10.50 Inch Rotor Diameter, Four Caliper Pistons, Anodized, Black

1 Review | 0 Answered Questions
Out of Stock
Kit Item Unavailable
Select your vehicle to verify fitment.
Select Vehicle
Wilwood Midget Inboard Brake Kit - 10.50 Inch Rotor
Wilwood Midget Inboard Brake Kit - 10.50 Inch Rotor
Zoomed In Image
Part # 95031027
$399.99
kit
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
What's In The Kit
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Position:
Rear
Rotor Diameter:
10.50 Inch
Caliper Pistons:
Four
Caliper Finish:
Anodized
Color:
Black
MFG. Part #:
95031027
Spline Count:
31
Rotor Hat Bolt Pattern:
6 x 5.50"
Rotor Thickness:
.35"
Rotor Shape:
Round
Centerline of Holes:
5.25"
Finish:
Black Oxide
Sold in Quantity:
Kit
Notes:
Includes rotor, caliper, hub, and pads.
Rotor Style:
Drilled
Rotor Material Type:
Steel

Info

.350" x 10.50" drilled steel rotor. 31-spline axle hub for use with all 6" on 5 1/2" bolt circle rotors. Dynalite caliper and pads.

The Billet Dynalite caliper is powerful, compact and super lightweight. Advanced computer engineering keeps this caliper extremely rigid, resulting in incredible brake torque at a bare minimum in weight, starting at 2.66 pounds. Internal fluid crossover eliminates external tubes and the four position, two-piece bleed screws allow for convenient mounting and easy bleeding. The Billet Dynalite uses standard quick change Dynalite pads, deep cup stainless steel pistons and high temperature seals, and has a black anodized finish. The time proven Dynalite caliper design is stronger and lighter than ever - ideal for Late Models, Modifieds, Sprints, Road Racers and Dragsters.

Wilwood's steel rotors have applications in all types of motorsports. Weighing in at 4.7 lbs these steel rotors provide a durable lightweight option in applications where sustained temperatures remain in the low to moderate range, and high heat spikes are only observed on an intermittent basis. With their 6" on 5 1/2" bolt centers these rotors can stop anything from a hard stopping drag race car at the end of a quarter mile, or a high speed stock car coming in from a qualifier at a super speedway. Steel rotors can also be found in lighter weight open wheel cars such as sprints and modifieds, and a variety of light weight, open wheel road course racers. A special alloy and proprietary manufacturing processes give these rotors high resistance to thermal distortion with excellent friction and wear characteristics against the pads.

Wilwood BP-10 Performance Pad Summary

  • Medium friction, smooth engagement, low abrasion on iron rotors.
  • Flat torque curve.
  • Low to medium wear rate, increases as temperature increases.
  • Medium friction, smooth engagement, low abrasion on iron rotors.

See the specs tab for more details.



Specs

BP-10 Pad Dimensions

  • 0.49 in. Wide
  • 3.96 in. Long
  • 2.21 in, Height
  •  6.36 in2 of total pad area

Temperature and Friciton Ratings.

  • Peak temperature range of 800-900 degrees F.
  • Peak friction rating of 0.46

Dust & Noise Ratings

  • Low: Dust Production
  • Low: Pad Noise
Some parts are not legal for use in California or other states with similar laws/regulations

Related Products

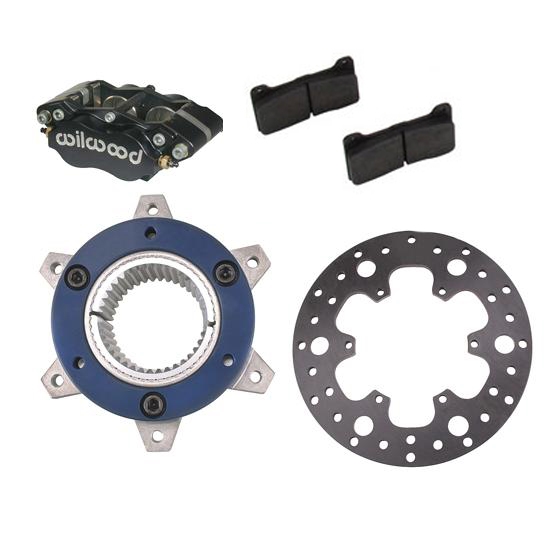

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Winters Performance 6902 Midget Inboard Brake Hub, 6 x 5-1/2 Inch
    Qty x 1
  • Wilwood 120-5081 Billet Dynalite Caliper for .380 Inch Rotor
    Qty x 1
  • Wilwood 160-3455 Drilled Steel Midget Rear Rotor, 10.50 Inch
    Qty x 1
  • BP10 Pad-Dynapro/Dynalite
    Qty x 2
