Add to Cart
$153.03

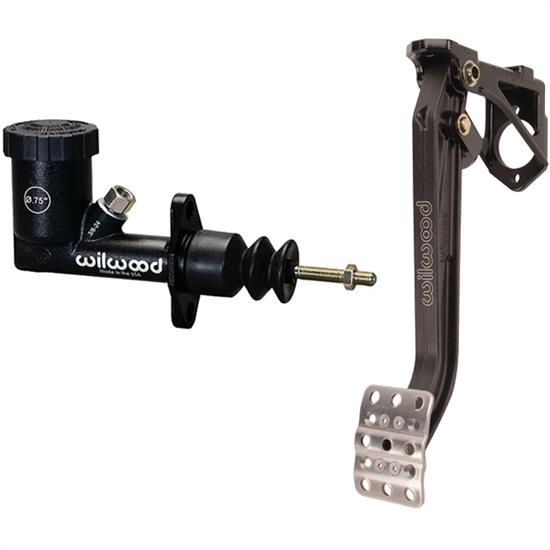

Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63

Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
X
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Wilwood 340-13834 7:1 Clutch/Brake Pedal w/260-15096 GS CI MC,.63
Zoomed In Image
Part # 9109218
$153.03
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Mounts a single brake or clutch master cylinder in a forward position outside the firewall
  • Lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal arm
  • The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary
  • All new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish
  • 0.62" bore size

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Finish:
EDP Coated
Pedal 1 Length:
12"
Pedal 1 Ratio:
7:1
Sold in Quantity:
Kit
Mount Facing:
Forward
Mount Position:
Swing

Info

Kit Includes:

  • (1) Wilwood 340-13834 Swing Mount Clutch/Brake Pedal
  • (1) Wilwood 260-15096 GS Compact Integral Master Cylinder, 0.62 Inch



Wilwood 340-13834 Swing Mount Clutch/Brake Pedal

  • This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall
  • This item features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal Arm
  • The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary
  • This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder
  • Horizontal mount flange master cylinders require an adapter kit
  • Aluminum construction
  • Black E-Coat finish
  • Forward mount facing



Wilwood 260-15096 GS Compact Integral Master Cylinder, 0.62 Inch

  • New master cylinders are an all new rebuildable design featuring a high pressure die cast aluminum body with a protective e-coat finish
  • Remote cylinders feature a standard 7/16-20 threaded inlet
  • Internally, a refined return spring and piston assembly assures positive pressure control along with a quick and complete release
  • 0.62" bore size
  • Aluminum construction
  • Black E-Coat finish
  • 8" overall length



Charts

Wilwood Pedal Instructions (PDF)

Wilwood Pedal Features (PDF)



Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Wilwood 260-15096 GS Compact Integral Master Cylinder, 0.62 Inch
    Qty x 1
  • Wilwood 340-13834 Swing Mount Clutch/Brake Pedal
    Qty x 1
