Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore

Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
X
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Wilwood 340-13834 7:1 Brake/Clutch Pedal w/HV MC, 1 Inch Bore
Zoomed In Image
Part # 9109215
$140.00
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • Mounts a single brake or clutch master cylinder in a forward position outside the firewall
  • Lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal arm
  • The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary
  • Wilwood high-volume aluminum master cylinders have the highest fluid capacity of any integral reservoir design
  • 1" bore

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Finish:
EDP Coated
Pedal 1 Length:
12"
Pedal 1 Ratio:
7:1
Sold in Quantity:
Kit
Mount Facing:
Forward
Mount Position:
Swing

Info

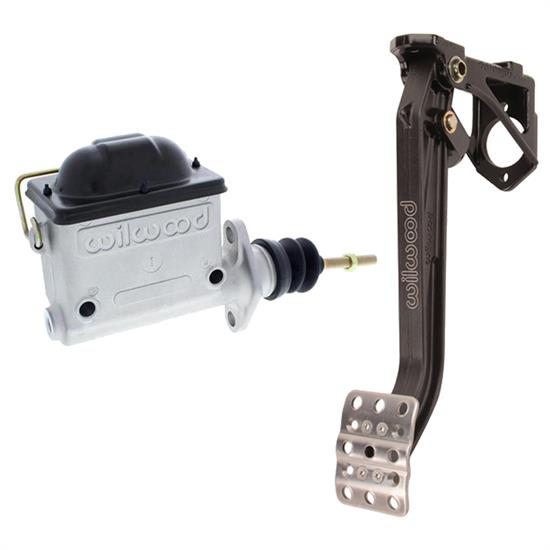

Kit Includes:

  • (1) Wilwood 340-13834 Swing Mount Clutch/Brake Pedal
  • (1) Wilwood High-Volume 1 Inch Bore Alum. Master Cylinder, 1/8-27 NPT Port



Wilwood 340-13834 Swing Mount Clutch/Brake Pedal

  • This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a forward position outside the firewall
  • This item features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 7:1 ratio pedal Arm
  • The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary
  • This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder
  • Horizontal mount flange master cylinders require an adapter kit
  • Aluminum construction
  • Black E-Coat finish
  • Forward mount facing



Wilwood High-Volume 1 Inch Bore Alum. Master Cylinder, 1/8-27 NPT Port

  • Wilwood high-volume aluminum master cylinders have the highest fluid capacity of any integral reservoir design
  • With a total capacity of 8.2 ounces, there is at least 26% more fluid than most competitive brands
  • More fluid volume means cooler temperatures and additional insurance for extreme conditions where high pad wear can compromise fluid levels during long events
  • With 1-7/16" of piston travel, there is plenty of margin when used with large four or six piston calipers
  • An internal slosh baffle guarantees a constant fluid supply to the bore chamber during hard cornering, acceleration and braking
  • This unique baffle also eliminates aeration into the reservoir from return fluid that can occur during brake release and bleeding procedures
  • Die-cast from high-grade aluminum
  • Heavy-duty internal piston springs provide fast retraction for immediate release and positive fluid transfer without the need for cumbersome external pushrod springs
  • Pedal feel is improved, piston retraction is guaranteed, fluid recovery is quicker and the bleeding process is simplified
  • Formed steel lids, heavyweight bail wires and bellows type gaskets keep the fluid in and the moisture out with correct pressure balancing during fluid displacement
  • 1/8"-27 NPT fluid port

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.



Charts

Wilwood Pedal Instructions (PDF)

Wilwood Pedal Features (PDF)

835-260676 Instructions(PDF)



Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • Wilwood 340-13834 Swing Mount Clutch/Brake Pedal
    Qty x 1
  • Wilwood High-Volume 1 Inch Bore Alum. Master Cylinder, 1/8-27 NPT Port
    Qty x 1
