Wilwood 340-13574 6:1 Rev Clutch/Brake Pedal and 260-3376 MC, 7/8

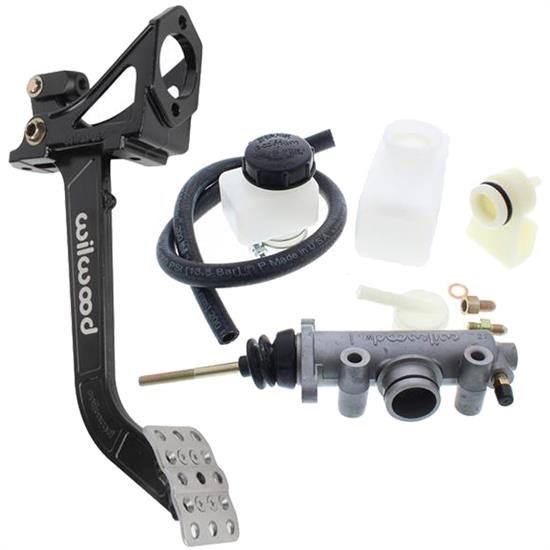

Kit Includes:

• (1) Wilwood 340-13574 Reverse Swing Mount Clutch/Brake Pedal, 6:1
• (1) Wilwood 260-3376 Universal Remote Master Cylinder, 7/8 Inch Bore



Wilwood 340-13574 Reverse Swing Mount Clutch/Brake Pedal, 6:1

• Swinging mount pedal assembly mounts a single brake or clutch master cylinder in a reverse position inside the firewall
• Lightweight aluminum frame, with a high strength reinforced I-Beam style forged 6:1 ratio pedal arm
• Non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary
• Accepts any Wilwood vertical mount flange single or tandem outlet master cylinder



Wilwood 260-3376 Universal Remote Master Cylinder, 7/8 Inch Bore

• Standard mounting bolt hole configurations provide easy applications for racing and off road vehicles, specialty cars, recreation and industrial vehicles
• Includes small and large reservoirs which can be direct or remote mounted
• Aluminum cylinder with plastic reservoir tank
• Mounting flange is a vertical pattern on a 2-1/4" on center
• Master cylinder has a single 3/8-24 brake line outlet
• The two side mount holes are 3" from center to center
• .875" = 7/8"

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.
