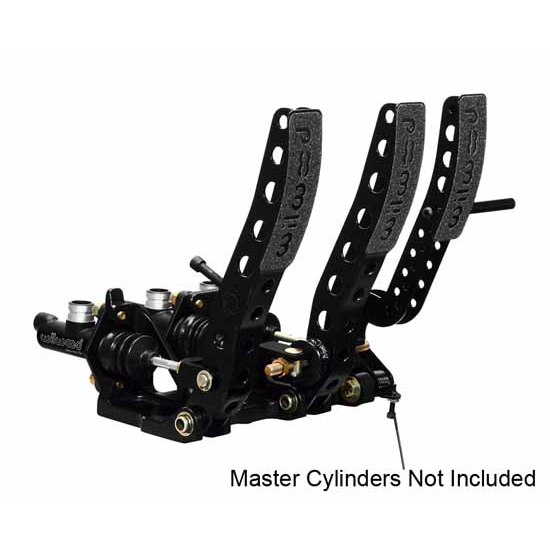

Wilwood 340-12411 Floor Mount Brake/Clutch/Throttle Pedal Assembly
Wilwood 340-12411 Floor Mount Brake/Clutch/Throttle Pedal Assembly

Wilwood 340-12411 Floor Mount Brake/Clutch/Throttle Pedal Assembly

Universal Fit, Floor Mount Position, Forward Master Cylinder Mount Type, Aluminum, EDP Coated

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 340-12411 Floor Mount Brake/Clutch/Throttle Pedal Assembly
Wilwood 340-12411 Floor Mount Brake/Clutch/Throttle Pedal Assembly
Wilwood 340-12411 Floor Mount Brake/Clutch/Throttle Pedal Assembly
Wilwood 340-12411 Floor Mount Brake/Clutch/Throttle Pedal Assembly
X
Wilwood 340-12411 Floor Mount Brake/Clutch/Throttle Pedal Assembly
Wilwood 340-12411 Floor Mount Brake/Clutch/Throttle Pedal Assembly
Zoomed In Image
Part # 83534012411
$406.89
$415.44
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
  • New floor mount pedal assembly has a brake / clutch / throttle triple pedal design
  • Features three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle
  • Made from an aluminum frame with strong lightweight fabricated steel pedal arms
  • Frame and the pedal arms have a black e-coat finish for protection and an attractive appearance
  • Engineered to have a 5.25 to 1 nominal ratio

Details

Position:
Floor Mount
Master Cylinder Mount Type:
Forward
Pedals Included:
Clutch/Brake/Throttle
MFG. Part #:
340-12411
Material Type:
Aluminum
Finish:
EDP Coated
Color:
Black
Mount Position:
Floor
Mount Facing:
Forward
Balance Bar:
Yes
Pedal 1 Ratio:
5.25 to 1
Pedal 2 Ratio:
5.25 to 1
GTIN Code:
889545028430

Info

Wilwood's new floor mount pedal assembly has a brake / clutch / throttle triple pedal design. There are three individual fabricated steel pedals with non-slip pedal pads to control brake, clutch and throttle. Pedal assembly part number 340-12411 is for front engine cars and includes a throttle bell crank and linkage assembly. This unit features an aluminum frame with strong lightweight fabricated steel pedal arms. The frame and the pedal arms have a black e-coat finish for protection and an attractive appearance. Also included with the pedal assembly are mounting studs, clevises, and balance bar assembly that is designed to provide smooth and accurate settings of the brake pedal bias. The balance bar can be set and locked down with the jam nut, or attached to a remote cable for quick on-track adjustments. The pedal assembly provides a 5.25 to 1 nominal ratio.

Charts

Installation Instructions (PDF)

Installation Instructions (PDF)
