Add to Cart
$370.32
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black

Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black

Universal Fit, Firewall/Frame Position, Disc Brake System Type, Tandem Outlet Count, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black
X
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black
Wilwood 261-14250-BK Remote Tandem Master Cylinder Kit, 15/16 In, Black
Zoomed In Image
We estimate this item will ship on or before August 18th.
Part # 83526114250BK
$370.32
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Firewall/Frame
Brake System Type:
Disc
Outlet Count:
Tandem
Reservoir Type:
Remote
Master Cylinder Bore Size:
15/16 Inch
Stroke:
1.12"
Master Cylinder Material:
Aluminum
Finish:
Black E-Coat
Color:
Black
Reservoir Included:
Yes
Number of Mounting Holes:
2
Reservoir Material:
ABS Plastic
Reservoir Size (cu in):
12.6
Fluid Capacity:
7.0 oz.
Area:
0.69 sq. in.
Master Cylinder Cap Included:
Yes
Hardware Included:
Yes
Pushrods Included:
No
Mounting Bracket Included:
Yes
Outlet Fitting:
3/8-24 IF or 1/2-20 IF
Outlet Fitting 2:
3/8-24 IF or 9/16-18 IF
Overall Length:
10.76"
Mounted Length:
6.56"
Centerline of Holes:
3.22"
Hose ID:
0.25"
MFG. Part #:
261-14250-BK
Sold in Quantity:
Kit
GTIN Code:
889545078251

Info

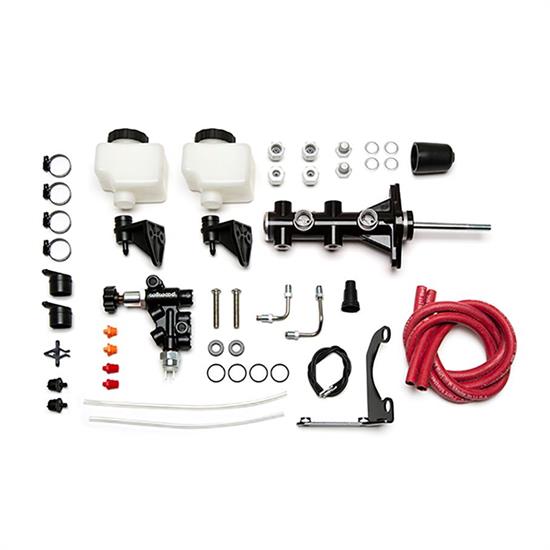

Wilwood has packaged the new Remote Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Wilwood's Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability.

Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.

  • 5/16" bore size
  • Black E-Coat Finish
  • Sold as a kit

Charts

Installation Instructions

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
