Wilwood 261-13272-P H/V Tandem Master Cylinder Kit, 7/8 Inch, Mustang
Wilwood 261-13272-P H/V Tandem Master Cylinder Kit, 7/8 Inch, Mustang

Wilwood 261-13272-P H/V Tandem Master Cylinder Kit, 7/8 Inch, Mustang

Universal Fit, Firewall Position, Disc Brake System Type, Tandem Outlet Count, Polished

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 261-13272-P H/V Tandem Master Cylinder Kit, 7/8 Inch, Mustang
Wilwood 261-13272-P H/V Tandem Master Cylinder Kit, 7/8 Inch, Mustang
Zoomed In Image
We estimate this item will ship on or before August 23rd.
Part # 83526113272P
Save 7%
$363.99
$395.04
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Firewall
Brake System Type:
Disc
Outlet Count:
Tandem
Reservoir Type:
Integral
Master Cylinder Bore Size:
7/8 Inch
Stroke:
1.1"
Master Cylinder Material:
Aluminum
Finish:
Polished
Fluid Capacity:
8.0 / 4.8 fl oz.
Area:
0.60 sq. in.
Outlet Fitting:
3/8"-24 IF or 1/2"-20 IF
Outlet Fitting 2:
3/8"-24 IF or 9/16"-18 IF
Overall Length:
13.65"
Mounted Length:
8.15"
MFG. Part #:
261-13272-P
Sold in Quantity:
Each
GTIN Code:
889545068184

Info

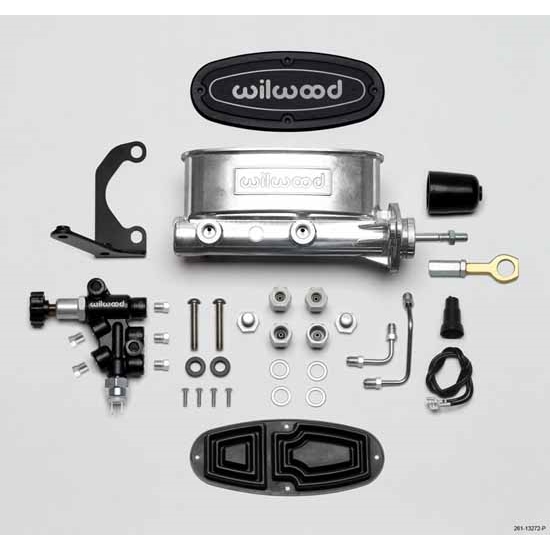

Wilwood has packaged the popular Aluminum Tandem Chamber Master Cylinder with the Combination Proportioning Valve, mounting bracket, fluid tubes and mounting hardware in a kit. Tandem Master Cylinder represents the latest in refinements in brake pressure actuation and fluid control. The slotted flange mounting makes it a simple bolt on for many OE mounts including the popular Chrysler, Corvette, GM, and Ford Mustang bolt patterns and is compatible with manual or power brake system applications. Master cylinders are available in three bores sizes, 7/8" , 1" or 1-1/8" , and three finishes, standard, ball burnished or black E-coat. The combination proportioning valve substantially simplifies wiring and brake proportioning adjustments on vehicles with custom brake systems. The combination block maintains full isolation between front and rear fluid circuits and is specifically designed to accompany the Tandem Chamber Master Cylinder. The combo valve and bracket are black E-coated for a performance look and long lasting durability. Stainless steel fluid tubes are precision bent with preinstalled stainless tube nuts for a simple bolt-on installation between the Combination Proportioning Valve and the Wilwood Tandem Master Cylinder. Stainless steel button head fasteners thread into the bracket for a simple installation and years of durable, rust-free performance. Simply connect the fluid lines, bleed the system, and you're finished.
Some parts are not legal for use in California or other states with similar laws/regulations
