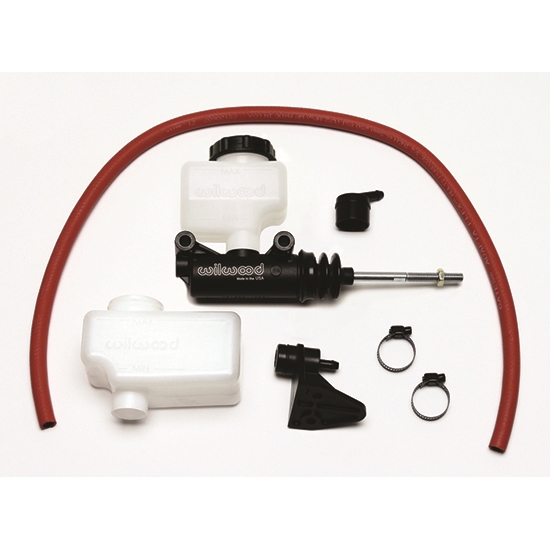

Wilwood 260-13624 Remote Side Mount Master Cylinder Kit, 7/8"Bore
Wilwood 260-13624 Remote Side Mount Master Cylinder Kit, 7/8"Bore

Wilwood 260-13624 Remote Side Mount Master Cylinder Kit, 7/8"Bore

Universal Fit, Frame Position, Disc Brake System Type, Single Outlet Count, EDP Coated, Black

0 Reviews | 1 Answered Question
In Stock
Can Ship FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 260-13624 Remote Side Mount Master Cylinder Kit, 7/8"Bore
Wilwood 260-13624 Remote Side Mount Master Cylinder Kit, 7/8"Bore
Zoomed In Image
Part # 83526013624
$86.99
$89.96
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Position:
Frame
Brake System Type:
Disc
Outlet Count:
Single
Reservoir Type:
Remote/Adjustable
Master Cylinder Bore Size:
7/8 Inch
Stroke:
1.12"
Master Cylinder Material:
Aluminum
Finish:
EDP Coated
Color:
Black
Reservoir Included:
Yes
Reservoir Material:
ABS Plastic
Reservoir Size (cu in):
18.0 or 12.6
Fluid Capacity:
10.0 / 7.0 fl oz.
Area:
.6 sq. in.
Volume:
.67 cu. in.
Outlet Fitting:
3/8"-24
Overall Length:
8.84"
Mounted Length:
3.37"
MFG. Part #:
260-13624
Sold in Quantity:
Kit
GTIN Code:
889545067361

Info

This new version of Wilwood’s Compact Combination Master Cylinders now features a 3/8-24 banjo outlet. Designed for limited space applications requiring the output capacity of a full size master cylinder. The ultra short 3.37”compact body provides 2.16” of additional clearance between the mounting flange and the fluid outlet. A full 1.12” of piston stroke meets or exceeds the stroke capacity of most full size cylinders. With 1/8” NPT fluid outlet port located at the top radius of the cylinder bore, reduces the chances for trapped air. Enhanced fluid inlet port allows mounting of the standard reservoir included in kit and also contains 11/16-20 internal threads for custom reservoir arrangements. The black E-Coated aluminum body resists corrosion and maintains a durable long lasting finish.

  • 7/8 Inch bore size
  • 1.12" stroke
  • .67 (cu in.) volume
  • 3/8"-24 banjo outlet
  • 1/8” NPT fluid outlet port
  • 11/16"-20 internal threads
  • Aluminum/plastic material
  • Remote reservoir
Wilwood 260-13624 Master Cylinder Instruction/Data Sheet (PDF)

Learn more about selecting the proper master cylinder for your vehicle by reading our tech article. Brake System Selection.

Tech Tip: The bigger the master cylinder, the more fluid you get...But you'll have less pressure at the caliper.
