Add to Cart
$215.94
$184.99

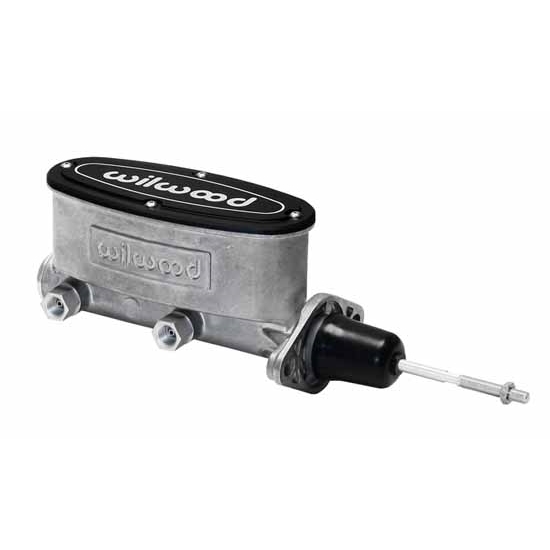

Wilwood 260-13375 H/V Tandem Master Cylinder w/Pushrod, 15/16 In.
Wilwood 260-13375 H/V Tandem Master Cylinder w/Pushrod, 15/16 In.

Wilwood 260-13375 H/V Tandem Master Cylinder w/Pushrod, 15/16 In.

Firewall Position, Disc Brake System Type, Tandem Outlet Count, Integral Reservoir Type

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 260-13375 H/V Tandem Master Cylinder w/Pushrod, 15/16 In.
Wilwood 260-13375 H/V Tandem Master Cylinder w/Pushrod, 15/16 In.
Zoomed In Image
Part # UP56400
Save 14%
$184.99
$215.94
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Position:
Firewall
Brake System Type:
Disc
Outlet Count:
Tandem
Reservoir Type:
Integral
Master Cylinder Bore Size:
15/16 Inch
Stroke:
1.1"
Master Cylinder Material:
Aluminum
Finish:
Natural
Fluid Capacity:
8.0 / 4.8 fl oz.
Area:
0.69 sq. in.
Pushrods Included:
1
Outlet Fitting:
3/8"-24 IF or 1/2"-20 IF
Outlet Fitting 2:
3/8"-24 IF or 9/16"-18 IF
Overall Length:
12.26"
Mounted Length:
8.15"
MFG. Part #:
260-13375
Sold in Quantity:
Kit
GTIN Code:
889545067194

Info

This master cylinder is garage sale priced because it has been mocked up and returned.  Has not had fluid in it.

 No Warranty, No Returns On Garage Sale Items

Wilwood's 15/16" bore Tandem Aluminum Master Cylinders available in 3 finishes, plain, ball burnished, and black e-coat. These master cylinders are designed primarily for manual applications and include a pushrod. They're designed for mount flanges from 3.22" to 3.40" , common measurements for most domestic cars and trucks from the mid 1960s to present, and offer fluid outlet ports on both sides of the bore. The stroke is set at 1.10" with a volume ratio of 2:1 between the primary and secondary chambers. Machined from high-pressure die castings, each master cylinder weighs only 3lbs, a 75% weight savings over most cast iron OE type master cylinders. We also offer a combination proportioning valve kit, which includes brackets and stainless lines specifically for use with this master cylinder, see PN 260-13190, or 220-13189 for retrofit kit.

Installation Instructions (PDF)

Specs

Material Type:
Aluminum
Finish:
Natural
Outlet Size:
1/2-20
Bore Size:
15/16"
Capacity:
8.0 / 4.8
Stroke:
1.10
Length:
12.26"
Area:
0.69
Outlets:
2
Reservoir Type:
Integral
Flange to End :
8.15"
Outlet Size 2:
1/2-20
Outlet Fit :
3/8-24 IF or 1/2-20 IF
Outlet Fit 2:
3/8-24 IF or 9/16-18 IF
Some parts are not legal for use in California or other states with similar laws/regulations
