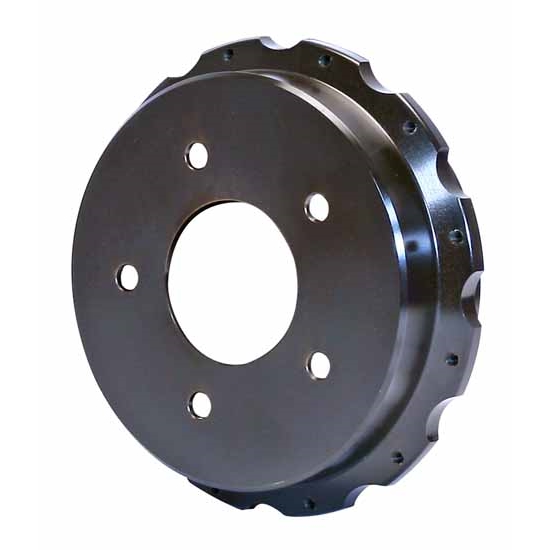

Wilwood 170-11306 Parking Brake Hat, .732 Inch Offset
Wilwood 170-11306 Parking Brake Hat, .732 Inch Offset

Wilwood 170-11306 Parking Brake Hat, .732 Inch Offset

Universal Fit, 0.73" Offset, 6.26" Outside Diameter, 2.66" Inside Diameter, Iron, EDP Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 170-11306 Parking Brake Hat, .732 Inch Offset
Wilwood 170-11306 Parking Brake Hat, .732 Inch Offset
X
Zoomed In Image
We estimate this item will ship on or before April 25th.
Part # 83517011306
Save 7%
$179.99
$194.25
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Offset:
0.73"
Outside Diameter:
6.26"
Inside Diameter:
2.66"
Rotor Hat Bolt Pattern:
12 x 8.75"
Material Type:
Iron
Finish:
EDP Coated
Hat Mount Style:
Fixed Mount
Hat Mount Hole Type:
Threaded
Hat Bolt Circle 1:
5 x 4.72
Mount Hole Size:
1/4-28"
Shoe Inside Dimension:
7.91"
Face Thickness:
0.25"
Stud Diameter:
0.64"
GTIN Code:
889545041552
Color:
Black

Info

These premium grade cast iron hats make it possible to use bolt-on rotors on vehicles equipped with internal shoe parking brake assemblies. Each hat is a precision machined, threaded hole design for use in conjunction with through-hole mount rotors. After machining, the hats are electro-coated for corrosion resistance.

Some parts are not legal for use in California or other states with similar laws/regulations
