-7%

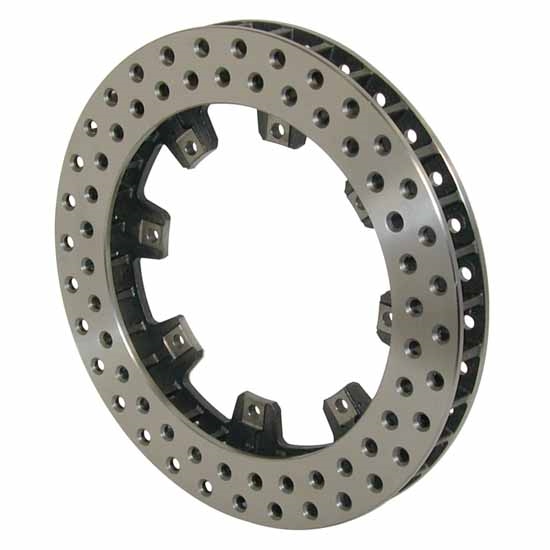

Wilwood 160-5863 Ultralite 32 Vane Drilled Vented Iron Rotor, 11.75 In

-7%

#8351605863

Wilwood 160-5863 Ultralite 32 Vane Drilled Vented Iron Rotor, 11.75 In

Name: Wilwood 160-5863 Ultralite 32 Vane Drilled Vented Iron Rotor, 11.75 In
Brand: Wilwood
SKU: 8351605863
Price: 115.74 USD
Availability: InStock
Rating: 4 (1 reviews)

1 Review

Ask a Question

Each hole deeply chamfered to eliminate stress points
Machined to close tolerances on face and vane thickness
Rotors are cast from premium grade, long grain carbon iron

Type:

Ultralite 32 Race Drilled

Slotted GT 36 R/H Slotted GT 36 L/H Ultralite 32 Scalloped Ultralite 32 Plain FaceUltralite HP-32 Plain Face Super Alloy Scalloped

$115.74

/each

In Stock

$125.00

Save $9.26

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Rear Position, Round Rotor Shape, Vented Rotor Type

Each hole deeply chamfered to eliminate stress points
Machined to close tolerances on face and vane thickness
Rotors are cast from premium grade, long grain carbon iron
Has a two row, 64 hole pattern that alternates between and directly over each vane
The 32 straight vane casting provides superior heat management and long service life

See more details

Key Specs

Rotor Diameter	11.75 Inch
Rotor Style	Drilled
Rotor Material Type	Iron
Rotor Thickness	0.81"
Rotor Hat Bolt Pattern	8 x 7.00"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Caution on Drilled Rotors

There is a common mis-perception that rotors are drilled to improve cooling. The reduced mass of a drilled rotor will dissipate its retained heat quicker, but it also builds up heat a much faster rate. The decision to use drilled rotors should be solely based on the merits of the lower rotating and unsprung weight, and NOT for improved cooling. It is NOT wise to use drilled rotors in sustained high heat on hard braking tracks unless the team budget affords a high frequency of rotor and brake pad replacement.

Race drilled rotors are unsafe for street use
Suitable applications: Light to moderate Dirt Racing

Proper Break-In Procedure for Steel or Cast Iron Rotors

New steel/iron rotors should be bedded in before being used in racing conditions. Proper bedding will prepare the rotor surface, prolong the rotor's life, and make it more resistant to thermal checking or cracking under severe braking conditions. The following procedures should be performed when bedding in both steel and cast iron rotors. It is best to bed in a new rotor using a used set of pads, preferably ones which will not create heat rapidly. Generating heat too rapidly will thermal shock the rotors. Likewise, when bedding in a new set of brake pads it is best to perform the process on a used rotor. This new/used bedding process permits controlled bedding of each individual component.

Make sure rotor surfaces are free from oils, grease, and brake fluid. Run vehicle up to a moderate speed and make several medium deceleration stops to heat up the rotor slowly. This will help reduce the chance of thermal shock caused by uneven heating of the rotor. Pull into the pits and allow the rotor to cool to ambient air temperature. Care should be taken not to ride the brakes into the pits as this may hot spot the rotor causing premature wear to the surface or structural damage.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Wilwood 160-5863 Details

When it comes to brake rotors, racers are constantly searching for the ultimate balance between the lowest weight and the ability to effectively manage heat. Decreased rotating weight in the drive line provides quicker deceleration under braking and quicker acceleration out of the corners. Lower weight also benefits handling with improved spring and shock control over the unsprung suspension mass. Wilwoods ULD-32 drilled iron rotors provides effective lightweight options for sprints, late models, modifieds, and other competition applications that race in low to medium temperature ranges.

Cast from premium grade, long grain carbon iron
Close tolerances on face and vane thickness
32 straight vane casting provides superior heat management and long service life
Two row, 64 hole pattern - alternates between and directly over each vane
Each hole deeply chamfered to eliminate stress points
Rotating and unsprung rotor mass reduced by 12%
Left or right hand mounting locations

Item Details

0.81" x 11.75"
8 x 7.00" B.C.

Specs

Thickness: .81"
Outside diameter: 11.75"
# Holes: 8
Bolt Circle: 7"
Thread: Thru
Weight: 7.2 lbs

CA Prop 65

Wilwood 160-5863 Specifications

KEY SPECS
MFG. Part #	160-5863
Brand	Wilwood
Rotor Diameter	11.75 Inch
Rotor Style	Drilled
Rotor Material Type	Iron
Rotor Thickness	0.81"
Rotor Hat Bolt Pattern	8 x 7.00"

GENERAL
Position	Rear
Rotor Shape	Round
Rotor Type	Vented
Rotor Finish	Plain
Vane Count	32 Straight Vane
Bedded	No
Balanced	No
Lug ID	6.38"
Inside Diameter	8.34"
Weight	7.2 lbs.
Sold in Quantity	Each
GTIN Code	889545039801

Ratings & Reviews

1 Review

Write A Review

1 reviews

Filter by Ratings

Sort Reviews

Nice piece

4.0

7 years ago

LMSS14

Sioux Falls

Verified

Nice, well built rotor with no issues other than it weighed in a couple ounces heavier than is listed in the description.

Would Recommend

Showing 1 of 1 reviews
