Product Summary

Rear Position, Round Rotor Shape, Solid Rotor Type

  • Precisely manufactured from the same high strength billets with the same precision as our 3 hole mount front rotors
  • A full symmetrical machining provides perfect balance
  • Engineered to have the truest rotation of any aluminum rotor being built
  • The engineered drill pattern combines the highest degree of weight reduction with the highest resistance to thermal distortion in the contact faces
  • A durable black anodized finish prevents corrosion and simplifies the visual inspection of the contact faces
See more details

Key Specs

Rotor Diameter10.20 Inch
Rotor StyleDrilled
Rotor Material TypeAluminum
Rotor Thickness0.31"
Rotor Hat Bolt Pattern3" x 42-Spline
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Wilwood 160-3270 Details

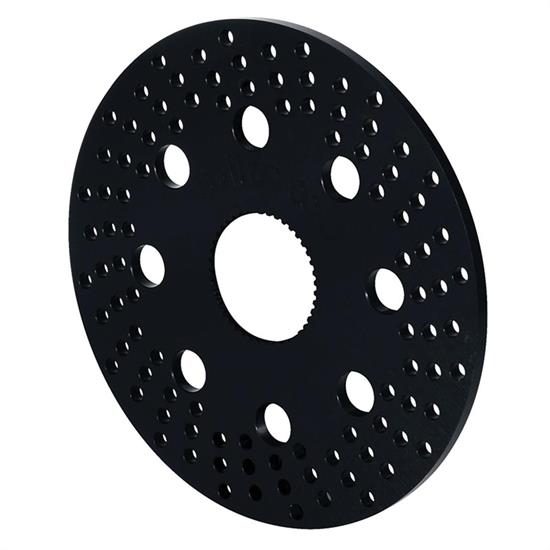

Wilwoods 3.00" x 42 splined axle mount rotors are manufactured from the same high strength billets with the same precision as our 3 hole mount front rotors. Full symmetrical machining provides perfect balance, perfect flatness and the truest rotation of any aluminum rotor being built. Wilwoods engineered drill pattern combines the highest degree of weight reduction with the highest resistance to thermal distortion in the contact faces. You get smooth engagement and a consistent full pedal from the low knock-back characteristics of this design. A durable black anodized finish prevents corrosion and simplifies the visual inspection of the contact faces. The best results are always achieved using PolyMatrix Q compound brake pads with these rotors.
  • Unsafe for street use & unsuitable for most forms of Racing.
  • Special racing application only. IE. Dirt Sprint & Midget.
  • Can result in catastrophic failure when misused.

Item Details

0.32 x 10.2
3" x 42-spline floating

Application

Note: Unsafe for street use & unsuitable for most forms of racing except dirt Sprints & Midgets.

Specs

  • Solid aluminum
  • LH or RH mounted
  • Thickness: 0.312"
  • O.D.: 10.2"
  • Bolt Circle: 3" x 42-spline
  • Threads:  Floating
  • Weight: 1.9 lbs
  • Face: drilled

Wilwood 160-3270 Specifications

KEY SPECS
MFG. Part #160-3270
BrandWilwood
Rotor Diameter10.20 Inch
Rotor StyleDrilled
Rotor Material TypeAluminum
Rotor Thickness0.31"
Rotor Hat Bolt Pattern3" x 42-Spline
GENERAL
PositionRear
Rotor ShapeRound
Rotor TypeSolid
Rotor FinishBlack E-Coat
Vane CountNone
BeddedNo
BalancedNo
Lug ID2.69"
Weight1.9 lbs.
Sold in QuantityEach
Notes3" by 42 spline.
GTIN Code889545098488
