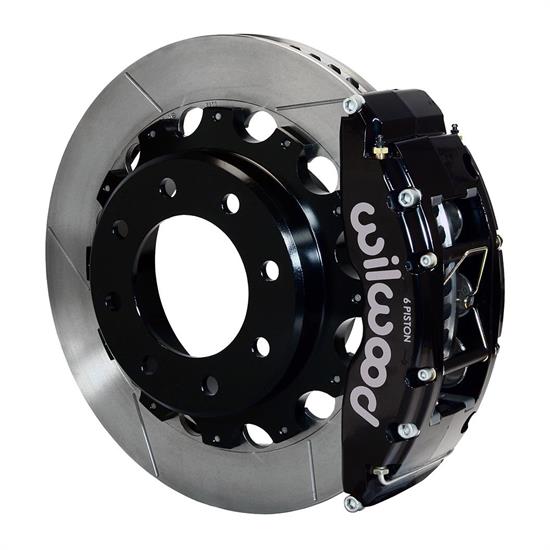

Wilwood 140-9406 TC6 Rear Disc Brake Kit, 1999-11 GM Truck/SUV 2500 HD
Wilwood 140-9406 TC6 Rear Disc Brake Kit, 1999-11 GM Truck/SUV 2500 HD

Wilwood 140-9406 TC6 Rear Disc Brake Kit, 1999-11 GM Truck/SUV 2500 HD

Rear Position, 8 on 6.5" Bolt Pattern, 16 Inch Rotor Diameter, Vented Rotor Type, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-9406 TC6 Rear Disc Brake Kit, 1999-11 GM Truck/SUV 2500 HD
Wilwood 140-9406 TC6 Rear Disc Brake Kit, 1999-11 GM Truck/SUV 2500 HD
X
Zoomed In Image
We estimate this item will ship on or before June 5th.
Part # 8351409406
$2,249.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
8 on 6.5"
Rotor Diameter:
16 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Black
MFG. Part #:
140-9406
Minimum Recommended Wheel Diameter:
20 Inch
Rotor Thickness:
1.38"
Offset:
0"
Mount Type:
Radial
Total Piston Area:
5.40 sq. in.
Piston Type:
Stainless
Pad Area:
13.00 sq. in.
Pad Volume:
6.00 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Plain Face
Caliper Type:
TC6
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Vane Count:
60 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Parking Brake Hat - Truck
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
8 x 6.50
Hat Material Type:
Iron
Hat Offset Dimension:
1.91"
GTIN Code:
889545031805

Info

TC6R rear axle disc brake kits with 16" rotors are the ultimate big brake solution for highly customized and modified trucks or SUVs upgraded to larger than stock wheels. TC6R kits can fit many 20" and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). TC6R kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades. TC6R calipers, BP-10 compound pads, and oversized rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements of each vehicle. These combined enhancements provide the necessary control over big wheels and tires to provide safe stopping on heavy weight vehicles.

Installation Instructions (PDF)

Application

1999 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
1999 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2000 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2000 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2001 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2002 Chevrolet Avalanche 2500 8 Lug - All
2002 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2002 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2003 Chevrolet Avalanche 2500 8 Lug - All
2003 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2003 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2004 Chevrolet Avalanche 2500 8 Lug - All
2004 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2004 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2005 Chevrolet Avalanche 2500 8 Lug - All
2005 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2005 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2005 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2005 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2006 Chevrolet Avalanche 2500 8 Lug - All
2006 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2006 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2006 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2006 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2007 Chevrolet Silverado 2500 HD Pickup 8 Lug - Classic Style
2007 Chevrolet Silverado 2500 HD Pickup 8 Lug - New Style
2007 Chevrolet Suburban 2500 8 Lug - All
2007 GMC Sierra 2500 HD Pickup 8 Lug - Classic Style
2007 GMC Sierra 2500 HD Pickup 8 Lug - New Style
2007 GMC Yukon XL 2500 8 Lug - All
2008 Chevrolet Silverado 2500 HD Pickup 8 Lug - All
2008 Chevrolet Suburban 2500 8 Lug - All
2008 GMC Sierra 2500 HD Pickup 8 Lug - All
2008 GMC Yukon XL 2500 8 Lug - All
2009 Chevrolet Silverado 2500 HD Pickup 8 Lug - All
2009 Chevrolet Suburban 2500 8 Lug - All
2009 GMC Sierra 2500 HD Pickup 8 Lug - All
2009 GMC Yukon XL 2500 8 Lug - All
2010 Chevrolet Silverado 2500 HD Pickup 8 Lug - All
2010 Chevrolet Suburban 2500 8 Lug - All
2010 GMC Sierra 2500 HD Pickup 8 Lug - All
2010 GMC Yukon XL 2500 8 Lug - All
2011 Chevrolet Suburban 2500 8 Lug - All
2011 GMC Yukon XL 2500 8 Lug - All
Some parts are not legal for use in California or other states with similar laws/regulations
