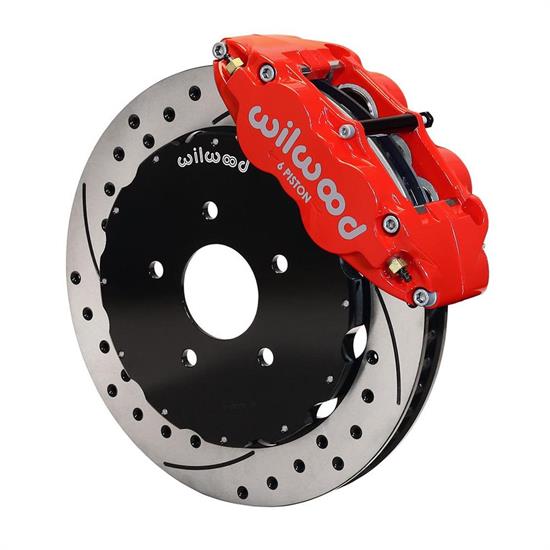

Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti
Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti

Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti

Front Position, 5 on 4.5" Bolt Pattern, 13.06 Inch Rotor Diameter, Vented Rotor Type, Red

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti
Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti
Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti
Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti
Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti
X
Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti
Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti
Wilwood 140-9190-DR FNSL6R Front Disc Brake Kit, 03-09 Nissan/Infiniti
Zoomed In Image
We estimate this item will ship on or before September 25th.
Part # 8351409190DR
Save 10%
$1,594.99
$1,786.39
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
13.06 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Red
MFG. Part #:
140-9190-DR
Minimum Recommended Wheel Diameter:
17 Inch
Rotor Thickness:
1.25"
Stud Diameter:
0.52"
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
8.20 sq. in.
Pad Volume:
3.8 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Forged Narrow Superlite 6R
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
48 Curved Vane
Bedded:
No
Balanced:
No
Hat Type:
Big Brake Hat - Short Offset
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 x 4.50
Hat Material Type:
Aluminum
Hat Offset Dimension:
0.54"
GTIN Code:
889545030679

Info

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13"-14" big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

2003 Infiniti G35 G35 All
2003 Nissan 350Z w/ 4 Piston Front Calipers
2003 Nissan 350Z w/ Single Piston Front Calipers
2004 Infiniti G35 G35 All RWD
2004 Nissan 350Z w/ 4 Piston Front Calipers
2004 Nissan 350Z w/ Single Piston Front Calipers
2005 Infiniti G35 G35 All RWD
2005 Nissan 350Z w/ 4 Piston Front Calipers
2005 Nissan 350Z w/ Single Piston Front Calipers
2006 Infiniti G35 G35 All RWD
2006 Nissan 350Z w/ 4 Piston Front Calipers
2006 Nissan 350Z w/ Single Piston Front Calipers
2007 Infiniti G35 G35 2 Door RWD
2007 Nissan 350Z w/ 4 Piston Front Calipers
2007 Nissan 350Z w/ Single Piston Front Calipers
2008 Nissan 350Z w/ 4 Piston Front Calipers
2008 Nissan 350Z w/ Single Piston Front Calipers
2009 Nissan 350Z w/ 4 Piston Front Calipers
2009 Nissan 350Z w/ Single Piston Front Calipers
Some parts are not legal for use in California or other states with similar laws/regulations
