Add to Cart
$2,249.99

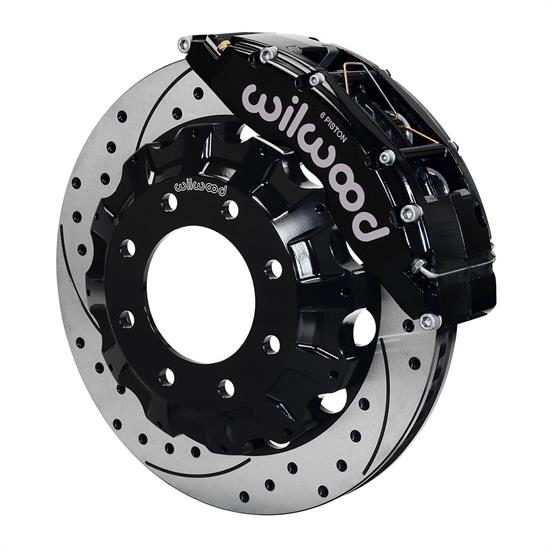

Wilwood 140-8996-D TC6R Front Brake Kit, 1999-11 GM H2/Truck/SUV 2500
Wilwood 140-8996-D TC6R Front Brake Kit, 1999-11 GM H2/Truck/SUV 2500

Wilwood 140-8996-D TC6R Front Brake Kit, 1999-11 GM H2/Truck/SUV 2500

Front Position, 8 on 6.5" Bolt Pattern, 16 Inch Rotor Diameter, Vented Rotor Type, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-8996-D TC6R Front Brake Kit, 1999-11 GM H2/Truck/SUV 2500
Wilwood 140-8996-D TC6R Front Brake Kit, 1999-11 GM H2/Truck/SUV 2500
X
Zoomed In Image
We estimate this item will ship on or before June 3rd.
Part # 8351408996D
$2,249.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
8 on 6.5"
Rotor Diameter:
16 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Black
MFG. Part #:
140-8996-D
Minimum Recommended Wheel Diameter:
20 Inch
Rotor Thickness:
1.38"
Stud Diameter:
0.63"
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
6.90 sq. in.
Piston Type:
Stainless
Pad Area:
13.00 sq. in.
Pad Volume:
6 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
TC6
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
60 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Truck Hat - Standard
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
8 x 6.50
Hat Material Type:
Aluminum
Hat Offset Dimension:
1.55"
GTIN Code:
889545030297

Info

TC6R calipers are purpose built to provide unsurpassed braking capacity on trucks and SUV's upgraded to larger than stock wheels. TC6R kits can fit many 20"and larger wheels (Verify your wheel interior clearance to the wheel clearance diagram in the installation instructions before purchase). Combining the high clamping efficiency of the TC6R caliper with 16" diameter directional vane rotors and high friction BP-10 compound brake pads, TC6R kits provide the braking power necessary to control the higher rotating weight of ultra-sized wheels and tires, especially with high GVW vehicles and vehicles used for towing. TC6R kits are engineer application to be fully compatible with the OE master cylinder output and retain full function of the ABS system.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

1999 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
1999 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
1999 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
1999 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2000 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2000 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2000 Chevrolet Suburban 2500 8 Lug - 4 x 4 w/ 4.63 Center Register Rear
2000 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2000 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2000 GMC Yukon XL 2500 8 Lug - 4 x 4 w/ 4.63 Center Register Rear
2001 Chevrolet Silverado 1500 HD Pickup 8 Lug - All
2001 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2001 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2001 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 Chevrolet Silverado 3500 Pickup 8 Lug - All
2001 Chevrolet Suburban 2500 8 Lug - All w/ 4.63 Center Register Rear
2001 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2001 GMC Sierra 1500 HD Pickup 8 Lug - All
2001 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2001 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2001 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2001 GMC Sierra 3500 Pickup 8 Lug - All
2001 GMC Yukon XL 2500 8 Lug - All w/ 4.63 Center Register Rear
2001 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2002 Chevrolet Avalanche 2500 8 Lug - All
2002 Chevrolet Silverado 1500 HD Pickup 8 Lug - All
2002 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2002 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2002 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 Chevrolet Silverado 3500 Pickup 8 Lug - All
2002 Chevrolet Suburban 2500 8 Lug - All w/ 4.63 Center Register Rear
2002 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2002 GMC Sierra 1500 HD Pickup 8 Lug - All
2002 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2002 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2002 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2002 GMC Sierra 3500 Pickup 8 Lug - All
2002 GMC Yukon XL 2500 8 Lug - All w/ 4.63 Center Register Rear
2002 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2003 Chevrolet Avalanche 2500 8 Lug - All
2003 Chevrolet Silverado 1500 HD Pickup 8 Lug - All w/o 4 wheel steering
2003 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2003 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2003 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 Chevrolet Silverado 3500 Pickup 8 Lug - All
2003 Chevrolet Suburban 2500 8 Lug - All w/ 4.63 Center Register Rear
2003 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2003 GMC Sierra 1500 HD Pickup 8 Lug - All w/o 4 wheel steering
2003 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2003 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2003 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2003 GMC Sierra 3500 Pickup 8 Lug - All
2003 GMC Yukon XL 2500 8 Lug - All w/ 4.63 Center Register Rear
2003 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2004 Chevrolet Avalanche 2500 8 Lug - All
2004 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2004 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2004 Chevrolet Silverado 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 Chevrolet Silverado 3500 Pickup 8 Lug - All
2004 Chevrolet Suburban 2500 8 Lug - All w/ 4.63 Center Register Rear
2004 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2004 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2004 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.63 Center Register Rear
2004 GMC Sierra 2500 Pickup 8 Lug - All w/ 4.84 Center Register Rear
2004 GMC Sierra 3500 Pickup 8 Lug - All
2004 GMC Yukon XL 2500 8 Lug - All w/ 4.63 Center Register Rear
2004 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2005 Chevrolet Avalanche 2500 8 Lug - All
2005 Chevrolet Silverado 1500 HD Pickup 8 Lug - All w/o 4 wheel steering
2005 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2005 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2005 Chevrolet Silverado 3500 Pickup 8 Lug - All
2005 Chevrolet Suburban 2500 8 Lug - All w/ 4.63 Center Register Rear
2005 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2005 GMC Sierra 1500 HD Pickup 8 Lug - All w/o 4 wheel steering
2005 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2005 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2005 GMC Sierra 3500 Pickup 8 Lug - All
2005 GMC Yukon XL 2500 8 Lug - All w/ 4.63 Center Register Rear
2005 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2006 Chevrolet Avalanche 2500 8 Lug - All
2006 Chevrolet Silverado 1500 HD Pickup 8 Lug - All
2006 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2006 Chevrolet Silverado 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2006 Chevrolet Silverado 3500 Pickup 8 Lug - All
2006 Chevrolet Suburban 2500 8 Lug - All w/ 4.63 Center Register Rear
2006 Chevrolet Suburban 2500 8 Lug - All w/ 4.84 Center Register Rear
2006 GMC Sierra 1500 HD Pickup 8 Lug - All
2006 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.63 Center Register Rear
2006 GMC Sierra 2500 HD Pickup 8 Lug - All w/ 4.84 Center Register Rear
2006 GMC Sierra 3500 Pickup 8 Lug - All
2006 GMC Yukon XL 2500 8 Lug - All w/ 4.63 Center Register Rear
2006 GMC Yukon XL 2500 8 Lug - All w/ 4.84 Center Register Rear
2007 Chevrolet Silverado 2500 HD Pickup 8 Lug - Classic Style
2007 Chevrolet Silverado 2500 HD Pickup 8 Lug - New Style
2007 Chevrolet Silverado 3500 HD Pickup 8 Lug - New Style w/ Dual Rear Wheel
2007 Chevrolet Silverado 3500 HD Pickup 8 Lug - New Style w/ Single Rear Wheel
2007 Chevrolet Silverado 3500 Pickup 8 Lug - Classic Style
2007 Chevrolet Suburban 2500 8 Lug - All
2007 GMC Sierra 2500 HD Pickup 8 Lug - Classic Style
2007 GMC Sierra 2500 HD Pickup 8 Lug - New Style
2007 GMC Sierra 3500 HD Pickup 8 Lug - New Style w/ Dual Rear Wheel
2007 GMC Sierra 3500 HD Pickup 8 Lug - New Style w/ Single Rear Wheel
2007 GMC Sierra 3500 Pickup 8 Lug - Classic Style
2007 GMC Yukon XL 2500 8 Lug - All
2008 Chevrolet Silverado 2500 HD Pickup 8 Lug - All
2008 Chevrolet Silverado 3500 HD Pickup 8 Lug - All w/ Dual Rear Wheel
2008 Chevrolet Silverado 3500 HD Pickup 8 Lug - All w/ Single Rear Wheel
2008 Chevrolet Suburban 2500 8 Lug - All
2008 GMC Sierra 2500 HD Pickup 8 Lug - All
2008 GMC Sierra 3500 HD Pickup 8 Lug - All w/ Dual Rear Wheel
2008 GMC Sierra 3500 HD Pickup 8 Lug - All w/ Single Rear Wheel
2008 GMC Yukon XL 2500 8 Lug - All
2009 Chevrolet Silverado 2500 HD Pickup 8 Lug - All
2009 Chevrolet Silverado 3500 HD Pickup 8 Lug - All w/ Dual Rear Wheel
2009 Chevrolet Silverado 3500 HD Pickup 8 Lug - All w/ Single Rear Wheel
2009 Chevrolet Suburban 2500 8 Lug - All
2009 GMC Sierra 2500 HD Pickup 8 Lug - All
2009 GMC Sierra 3500 HD Pickup 8 Lug - All w/ Dual Rear Wheel
2009 GMC Sierra 3500 HD Pickup 8 Lug - All w/ Single Rear Wheel
2009 GMC Yukon XL 2500 8 Lug - All
2010 Chevrolet Silverado 2500 HD Pickup 8 Lug - All
2010 Chevrolet Silverado 3500 HD Pickup 8 Lug - All w/ Dual Rear Wheel
2010 Chevrolet Silverado 3500 HD Pickup 8 Lug - All w/ Single Rear Wheel
2010 Chevrolet Suburban 2500 8 Lug - All
2010 GMC Sierra 2500 HD Pickup 8 Lug - All
2010 GMC Sierra 3500 HD Pickup 8 Lug - All w/ Dual Rear Wheel
2010 GMC Sierra 3500 HD Pickup 8 Lug - All w/ Single Rear Wheel
2010 GMC Yukon XL 2500 8 Lug - All
2011 Chevrolet Suburban 2500 8 Lug - All
2011 GMC Yukon XL 2500 8 Lug - All
Some parts are not legal for use in California or other states with similar laws/regulations
