#8351407141ZR

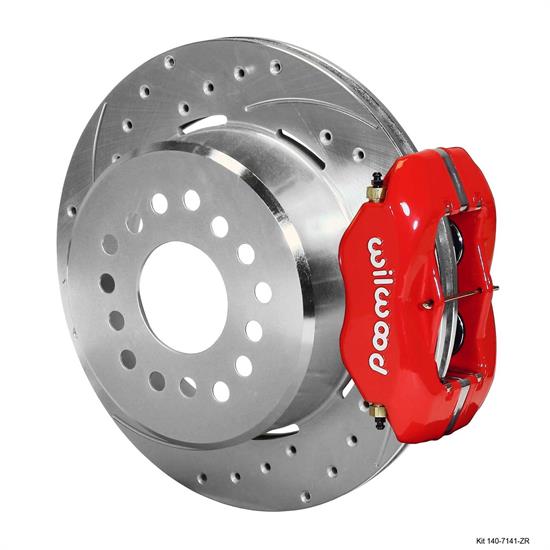

Wilwood 140-7141-ZR FDLI Rear Brake Kit, Chevy 12 Bolt w/ C-Clips
- Rotors have a 12.19" diameter and will fit 15" and up wheels
- Calipers have a total of 4 pistons and are powder coated red for added protection
- Comes pre-drilled with the 5 on 4.5"
See More
Discontinued
This item is currently not available
Shop all Disc Brake Kits
Product Summary
GM 8.2 Inch 10-Bolt Chevy 64-72, GM 8.5 Inch 10-Bolt
- Rotors have a 12.19" diameter and will fit 15" and up wheels
- Calipers have a total of 4 pistons and are powder coated red for added protection
- Comes pre-drilled with the 5 on 4.5"
- A drilled and slotted design ensures that maximum heat dissipation is achieved
- A zinc plating on the rotor makes corrosion a thing of the past
See more details
Key Specs
| Position | Rear |
| Bolt Pattern | Multi: 5 on 4.5" | 4.75" | 5" |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyWilwood 140-7141-ZR Details
Wilwood 140-7141-ZR Details
This group of FDLI Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized an
Charts
Wilwood 140-7141-ZR Specifications
Wilwood 140-7141-ZR Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 140-7141-ZR |
| Brand | Wilwood |
| Position | Rear |
| Bolt Pattern | Multi: 5 on 4.5" | 4.75" | 5" |
| Rotor Diameter | 12.19 Inch |
| Rotor Type | Vented |
| Caliper Pistons | Four |
| Caliper Finish | Powder Coated |
| Color | Red |
| Parking Brake Provision | Yes |
| Minimum Recommended Wheel Diameter | 15 Inch |
| Hardware Included | Yes |
| Rotor Style | Drilled & Slotted |
| Front Rotor Included | No |
| Front Caliper Included | No |
| Rear Caliper Included | Yes |
| Front Spindles Included | No |
| Master Cylinder Included | No |
| Brake Booster Included | No |
| Rear Rotor Included | Yes |
| GENERAL | |
| Rotor Thickness | 0.81" |
| Offset | 2.81" |
| Axle Flange Offset | 2.75" |
| Mount Type | Lug |
| Total Piston Area | 3.00 sq. in. |
| Piston Type | Stainless |
| Pad Area | 6.36 sq. in. |
| Pad Volume | 2.10 cu. in. |
| Brake Pad Compound | BP-10 |
| Caliper Type | Lug |
| Rotor Finish | Zinc Plated |
| Rotor Material Type | Iron |
| Vane Count | 32 Straight Vane |
| Bedded | No |
| Balanced | No |
| GTIN Code | 889545023480 |
| Brake Lines Included | No |
| Caliper Color | Red |
| Caliper Material Type | Forged Aluminum |
