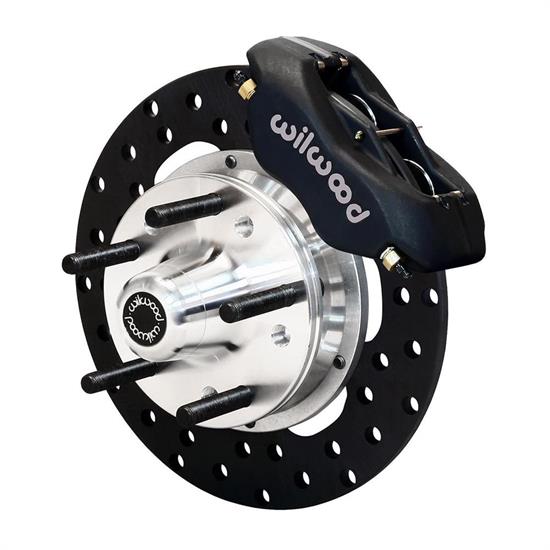

Wilwood 140-2713-BD FDL Front Drag Disc Brake Kit, 65-72 Mopar A-Body
Wilwood 140-2713-BD FDL Front Drag Disc Brake Kit, 65-72 Mopar A-Body
Front Position, Dual: 5 on 4" | 4.50" Bolt Pattern, 10.75 Inch Rotor Diameter, Solid Rotor Type
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 140-2713-BD FDL Front Drag Disc Brake Kit, 65-72 Mopar A-Body
X
We estimate this item will ship on or before February 3rd.
Part # 8351402713BD
$701.24
$748.99
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Position:
Front
Bolt Pattern:
Dual: 5 on 4" | 4.50"
Rotor Diameter:
10.75 Inch
Rotor Type:
Solid
Caliper Pistons:
Four
Caliper Finish:
Type III Anodized
Color:
Gray
Parking Brake Provision:
No
MFG. Part #:
140-2713-BD
Minimum Recommended Wheel Diameter:
15 Inch
Rotor Thickness:
0.35"
Stud Diameter:
1/2-20"
Spindle Type:
Factory Drum Spindle
Mount Type:
Lug
OE Hub Offset:
0.34"
Total Piston Area:
4.80 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Brake Pad Compound:
BP-10
Rotor Style:
Drilled
Caliper Type:
Forged Dynalite
Rotor Finish:
Black Oxide
Rotor Material Type:
Steel
Vane Count:
None
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545022278
Front Rotor Included:
Yes
Front Rotor Diameter:
10.75 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front caliper Piston Quantity:
4
Front Caliper Finish:
Gray Type III Anodized
Rear caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No
Info
FDL Front Drag kits are drag racing's most popular front brake kits. FDL kits are available for the popular muscle car spindles and select aftermarket front struts used on four-wheel disc cars weighing up to 2,800 pounds, or rear drum brake equipped cars weighing up to 2,400 pounds. Forged billet FDL four piston calipers mount directly to the spindle with a bolt-on bracket. Forged billet, five lug hubs with direct mount steel rotors combine to provide an average weight savings of over 30 pounds compared to stock drum or disc brakes. Kits include all new hardware, wheel bearings, seals and extra length lug studs.
Application
1965 Dodge Dart 10" Inch Drum Brake Spindle1965 Plymouth Barracuda 10" Inch Drum Brake Spindle
1965 Plymouth Valiant 10" Inch Drum Brake Spindle
1966 Dodge Dart 10" Inch Drum Brake Spindle
1966 Plymouth Barracuda 10" Inch Drum Brake Spindle
1966 Plymouth Valiant 10" Inch Drum Brake Spindle
1967 Dodge Dart 10" Inch Drum Brake Spindle
1967 Plymouth Barracuda 10" Inch Drum Brake Spindle
1967 Plymouth Valiant 10" Inch Drum Brake Spindle
1968 Dodge Dart 10" Inch Drum Brake Spindle
1968 Plymouth Barracuda 10" Inch Drum Brake Spindle
1968 Plymouth Valiant 10" Inch Drum Brake Spindle
1969 Dodge Dart 10" Inch Drum Brake Spindle
1969 Plymouth Barracuda 10" Inch Drum Brake Spindle
1969 Plymouth Valiant 10" Inch Drum Brake Spindle
1970 Dodge Dart 10" Inch Drum Brake Spindle
1970 Plymouth Duster 10" Inch Drum Brake Spindle
1970 Plymouth Valiant 10" Inch Drum Brake Spindle
1971 Dodge Dart 10" Inch Drum Brake Spindle
1971 Dodge Dart Demon 10" Inch Drum Brake Spindle
1971 Plymouth Duster 10" Inch Drum Brake Spindle
1971 Plymouth Valiant 10" Inch Drum Brake Spindle
1972 Dodge Dart 10" Inch Drum Brake Spindle
1972 Dodge Dart Demon 10" Inch Drum Brake Spindle
1972 Plymouth Duster 10" Inch Drum Brake Spindle
1972 Plymouth Valiant 10" Inch Drum Brake Spindle
Charts
Important Messages
- This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
