Wilwood 140-15287-D Forged Narrow Superlite 6R Front Brake Kit
Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 12.88 Inch Rotor Diameter, Powder Coated
- This item ships directly from the manufacturer. It may take an additional 3 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

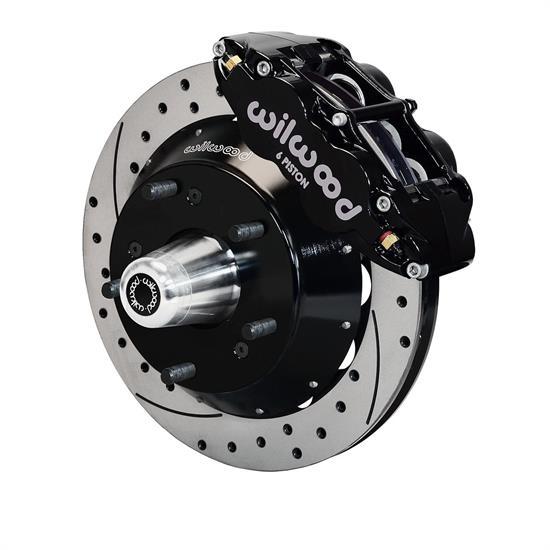

Billet Forged six-piston calipers with 12.88” rotors deliver the ultimate combination for braking power and style in this group of kits engineered for 1982 through 1992 GM F-Body: Camaro and Firebird vehicles. Kit works with both standard OEM single piston caliper spindles and the performance 1LE dual piston caliper spindles. Built exclusively for 17” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application
- Fits 1982-92 GM F-Body
- Black powdercoated finish
- Drilled rotor
Assembly Instructions (PDF)
Wheel Clearance Diagram (PDF)
1. This brake kit has a hub offset of 0.25" which means this hub offset will move the wheels inward or outward from the fenderby this amount on each side of the vehicle
2. Requires modifications to original spindles
3. This kit will work with both single piston and dual piston (1LE) spindles
