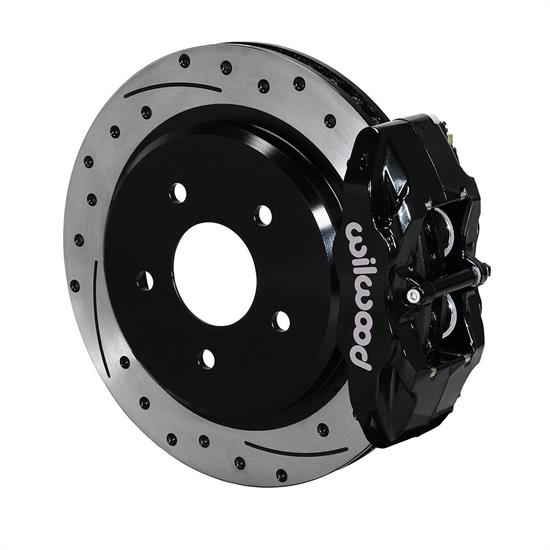

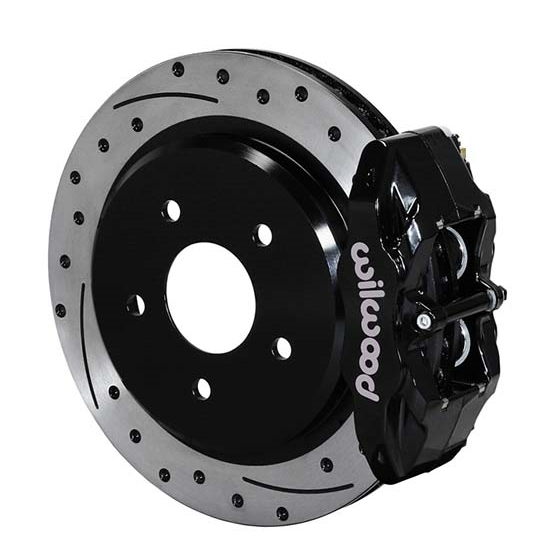

Wilwood 140-15176-D DPC56 Rear Replacement Caliper & Rotor Kit, Black
Rear Position, 5 on 4.75" Bolt Pattern, 12 Inch Rotor Diameter, Vented Rotor Type
- This item ships directly from the manufacturer. It may take an additional 3 business days for Wilwood to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
This DPC56 replacement rear caliper & rotor kit from Wilwood is engineered to be a high performance street and custom replacement kit for Corvettes and hot rods using Corvette suspension. In addition to the high-tech styling and superior performance of the SLC56 calipers, this kit includes the positive response, long wear, high fade resistance, and easy to clean properties of the BP-10 compound Smart Pads. This caliper & rotor kit is a direct bolt-on replacement for 1997-2013 C5 or C6 without the need for additional brackets or adapters.
- Replacement rear caliper & rotor kit
- 1997-2013 C5 or C6
- Includes BP-10 Smart Pads & Dimpled/Slotted rotors
- Direct easy installation
Wheel Clearance (GIF)
- Rear End Axle: OEM
- Axle Offset: 0
- Mount Type: Lug
- Caliper Type: 4 - Black Powder Coat
- Wheel Diameter: 17
Calipers- 120-13916-BK, 120-13916-BK
- Type: DPC56
- Finish: Black Powder Coat
- Piston Count: 4
- Piston Area: 2.46
- Piston Type: Stainless
- Mount Type: Lug
- Pad Compound: BP-10
Rotors- 160-7768-BK, 160-7767-BK
- Type: SRP Dimpled & Slotted
- Finish: Black Electro Coat
- Material: Iron
- OD: 12"
- Width: 1.03"
- Vane Count: Vented
- Design Type: SRP-BLK
- Dynamically Balanced: Yes
- Chevrolet Corvette 2009-2013 Base
- Chevrolet Corvette 1997-2004 C-5 & Z06
- Chevrolet Corvette 2005-2008 C-6 - Base
NotesKit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.00" diameter rear rotor. DPC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.
