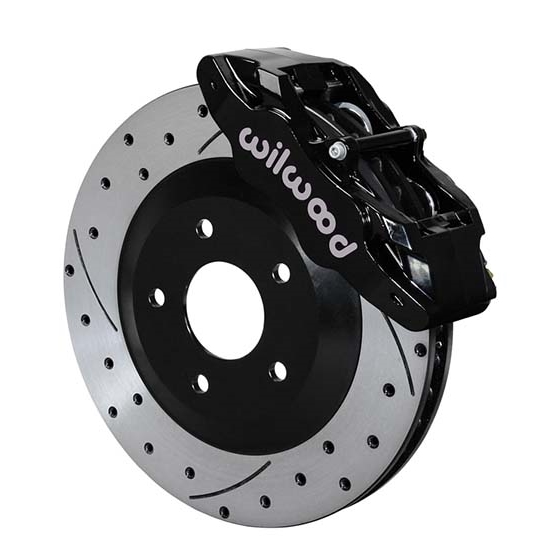

Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black
Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black

Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black

Front Position, 5 on 4.75" Bolt Pattern, 12.80 Inch Rotor Diameter, Vented Rotor Type, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black
Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black
Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black
Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black
Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black
X
Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black
Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black
Wilwood 140-15175-D SLC56 Front Replacement Caliper & Rotor Kit, Black
Zoomed In Image
We estimate this item will ship on or before October 6th.
Part # 83514015175D
$799.94
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
5 on 4.75"
Rotor Diameter:
12.80 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
No
MFG. Part #:
140-15175-D
Minimum Recommended Wheel Diameter:
17 Inch
Finish:
Powder Coated
Sold in Quantity:
Each
Spindle Type:
Factory Disc Spindle
Mount Type:
Lug
Total Piston Area:
4.12 sq. in.
Piston Type:
Stainless
Pad Area:
8.2 sq. in.
Pad Volume:
3.8 cu. in.
Caliper Type:
SLC56
GTIN Code:
889545075106
Front Rotor Included:
Yes
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front caliper Piston Quantity:
4
Front Caliper Finish:
Powder Coated Black
Rear caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

This SLC56 replacement front caliper & rotor kit from Wilwood is engineered to be a high performance street and custom replacement kit for Corvettes and hot rods using Corvette suspension. In addition to the high-tech styling and superior performance of the SLC56 calipers, this kit includes the positive response, long wear, high fade resistance, and easy to clean properties of the BP-10 compound Smart Pads. This caliper & rotor kit is a direct bolt-on replacement for 1997-2013 C5 or C6 without the need for additional brackets or adapters.

  • Replacement front caliper & rotor kit
  • 1997-2013 C5 or C6
  • Includes BP-10 Smart Pads & Dimpled/Slotted rotors
  • Direct easy installation

Wheel Clearance (GIF)

Kit Summary:

  • Spindle Type: Factory Disc Spindle
  • Mount Type: Lug
  • Caliper Type: 4 - Black Powder Coat
  • Wheel Diameter: 17

Calipers- 120-13915-BK, 120-13915-BK

  • Type: SLC56
  • Finish: Black Powder Coat
  • Piston Count: 4
  • Piston Area: 4.12
  • Piston Type: Stainless
  • Mount Type: Lug
  • Pad Compound: BP-10

Rotors- 160-9335-BK, 160-9334-BK

  • Type: SRP Dimpled & Slotted
  • Finish: Black Electro Coat
  • Material: Iron
  • OD: 12.8"
  • Width: 1.25"
  • Vane Count: Venter
  • Design Type: SRP-BLK
  • Dynamically Balanced: Yes

Application

  • Chevrolet Corvette 2009-2013 Base
  • Chevrolet Corvette 1997-2004 C-5 & Z06
  • Chevrolet Corvette 2005-2008 C-6 - Base

Charts

Installation Instructions(PDF)

Notes

Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.80 diameter front rotor. SLC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
