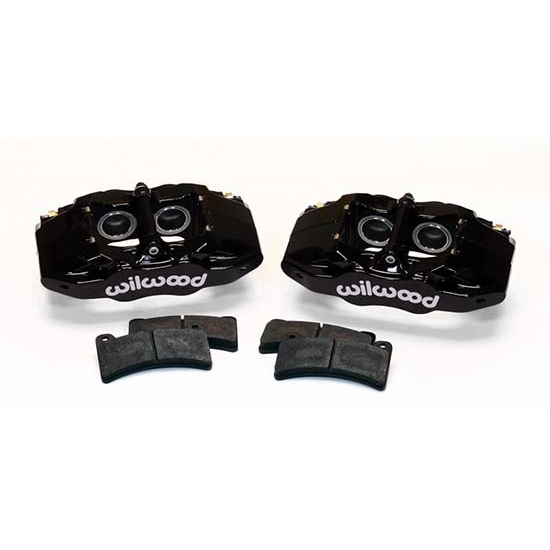

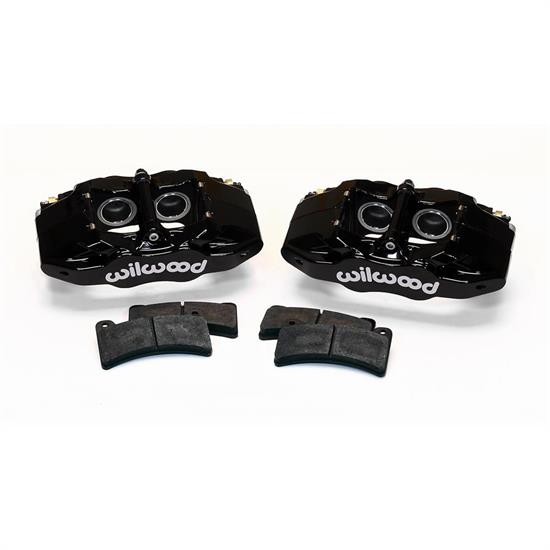

Wilwood 140-15174-BK DPC56 Rear Replacement Caliper Kit, Black
Wilwood 140-15174-BK DPC56 Rear Replacement Caliper Kit, Black
Four Caliper Pistons, Powder Coated, Lug Caliper Mounting Type, Black
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select Vehicle
Wilwood 140-15174-BK DPC56 Rear Replacement Caliper Kit, Black
X
We estimate this item will ship on or before October 2nd.
Part # 83514015174BK
$574.94
each
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles
Details
Caliper Pistons:
Four
Finish:
Powder Coated
Caliper Mounting Type:
Lug
Color:
Black
Total Piston Area:
2.46 sq. in.
Pad Area:
5.1 sq. in.
Pad Volume:
1.71 cu. in.
Offset:
0"
Mount Type:
Lug
Caliper Type:
DPC56
Caliper Finish:
Powder Coated
Piston Type:
Stainless
Position:
Rear
MFG. Part #:
140-15174-BK
GTIN Code:
889545075083
Sold in Quantity:
Each
Info
This DPC56 replacement rear caliper kit from Wilwood is engineered to be a high performance street and custom replacement kit for Corvettes and hot rods using Corvette suspension. In addition to the high-tech styling and superior performance of the SLC56 calipers, this kit includes the positive response, long wear, high fade resistance, and easy to clean properties of the BP-10 compound Smart Pads. This caliper kit is a direct bolt-on replacement for the OE calipers on all models of 1997-2004 C5's and all 2005-2013 base model C6's using the existing 12" diameter OE dimension front rotors. You won't have to worry about fitment as the calipers attach directly to the Corvette spindle without the need for brackets or adapters and accept all types of OE banjo bolt style brake hoses.
- Replacement rear caliper kit
- 1997-2004 C5, 2005-2013 base model C6
- Includes BP-10 Smart Pads
- Direct easy installation
Wheel Clearance (GIF)
Kit Summary:
- Rear End Axle: OEM
- Axle Offset: 0
- Mount Type: Lug
- Caliper Type: 4 - Black Powder Coat
- Wheel Diameter: 17
Calipers- 120-13916-BK, 120-13916-BK
- Type: DPC56
- Finish: Black Powder Coat
- Piston Count: 4
- Piston Area: 2.46
- Piston Type: Stainless
- Mount Type: Lug
- Pad Compound: BP-10
Application
- Chevrolet Corvette 2009-2013 Base
- Chevrolet Corvette 1997-2004 C-5 & Z06
- Chevrolet Corvette 2005-2008 C-6 - Base
Charts
Installation Instructions(PDF)
Notes
Kit fits 97-2004 C5 all, 2005-2013 C6 Base Models w/ 12.00" diameter rear rotor. DPC56 caliper kits have been checked to clear Z06 model wheels. All other OE and aftermarket wheels should be checked for proper clearance. . Wheel spacers may be required on some applications.Important Messages:
- This item ships directly from the manufacturer. It may take an additional 2 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
