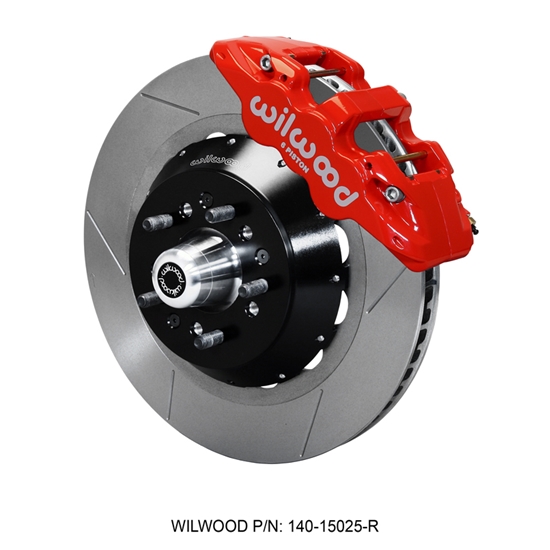

Wilwood 140-15025-R AERO6 Big Brake Front Brake Kit, Radial, Red
Wilwood 140-15025-R AERO6 Big Brake Front Brake Kit, Radial, Red

Wilwood 140-15025-R AERO6 Big Brake Front Brake Kit, Radial, Red

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 15 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-15025-R AERO6 Big Brake Front Brake Kit, Radial, Red
Wilwood 140-15025-R AERO6 Big Brake Front Brake Kit, Radial, Red
Zoomed In Image
We estimate this item will ship on or before December 17th.
Part # 83514015025R
$2,019.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
15 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Red
MFG. Part #:
140-15025-R
Rotor Thickness:
1.25"
Finish:
Powder Coated
Hardware Included:
Yes
Sold in Quantity:
Each
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
OE Hub Offset:
0.68"
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
11 sq. in.
Pad Volume:
5.2 cu. in.
Compound:
BP-20
Rotor Style:
Slotted
Caliper Type:
AERO6
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Vane Count:
60 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Hat - Flared Bell
Hat Finish:
Black E-Coat
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.50
Stud Diameter 2:
0.52"
Hub Bolt Circle 2:
5 x 4.75"
Hub Bolt Circle 1:
5 x 4.50"
Hub Material:
Aluminum
Hat Material Type:
Aluminum
Hat Offset Dimension:
1.75"
GTIN Code:
889545073508

Info

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades.  Directional staggered vane 14.00” to 15.00”rotors provide maximum cooling for sustained high heat durability.

  • +.68 OE Hub Offset
  • Radial Mount Type
  • Red Powder Coat
  • 15" Rotor Diameter
  • 16" Wheel Diameter
Some parts are not legal for use in California or other states with similar laws/regulations
