$2,387.49

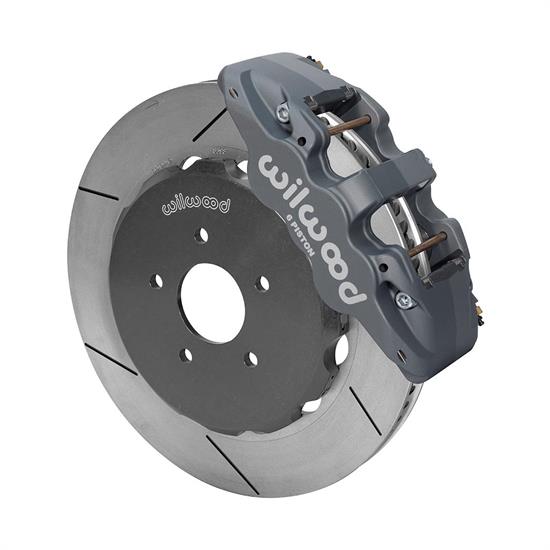

Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, Race

Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, Race

Front Position, 5 on 4.5" Bolt Pattern, 14 Inch Rotor Diameter, Vented Rotor Type, Gray

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
X
Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, Race
Zoomed In Image
We estimate this item will ship on or before June 10th.
Part # 83514014820
$2,387.49
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Type III Anodized
Color:
Gray
Parking Brake Provision:
No
MFG. Part #:
140-14820
Minimum Recommended Wheel Diameter:
18 Inch
Bolt Hole Pattern:
5 x 4.5
Rotor Thickness:
1.25"
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
4.04 sq. in.
Pad Area:
11.1 sq. in.
Pad Volume:
6.6 cu. in.
Brake Pad Compound:
BP-30
Rotor Style:
Slotted
Caliper Type:
AERO6
Rotor Finish:
Plain
Rotor Material Type:
Spec-37 Iron
Bedded:
No
Balanced:
Yes
Hat Type:
Big Brake Hat - Short Offset
Hat Bolt Circle 1:
5 x 4.5
GTIN Code:
889545084214
Front Rotor Included:
Yes
Front Rotor Diameter:
14 Inch
Rear Rotor Included:
No
Front Caliper Included:
Yes
Front Caliper Piston Quantity:
6
Front Caliper Finish:
Gray Type III Anodized
Rear Caliper Included:
No
Front Spindles Included:
No
Master Cylinder Included:
No
Brake Booster Included:
No

Info

Wilwood 140-14820 AERO6 Big Brake Front Brake Kit, 14 Inch, RaceWilwoodDisc Brake Kits140-14820

Application

This brake kit is compatible with the following vehicles:

  • Infiniti G35 2007-2008 G35 4 Door RWD
  • Infiniti G37 2009-2013 2 Door, Except Brembo Brakes
  • Infiniti G37 2009-2013 4 Door, Except Brembo Brakes
  • Infiniti G37 2008-2013 Brembo Brakes
  • Infiniti G37 2008 Except Brembo Brakes
  • Nissan 370Z 2009-2013 w/ Sport Package
  • Nissan 370Z 2009-2013 w/o Sport Package

Notes

*Note-This hub offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle. Check the wheel clearance diagram in the installation instructions below to verify you have adequate wheel clearance for this kit.

Charts

Assembly Instructions (PDF)

Wheel Clearance Diagram (PDF)



Important Messages

  • This item ships directly from the manufacturer. It may take an additional 15 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
