Add to Cart
$1,299.99

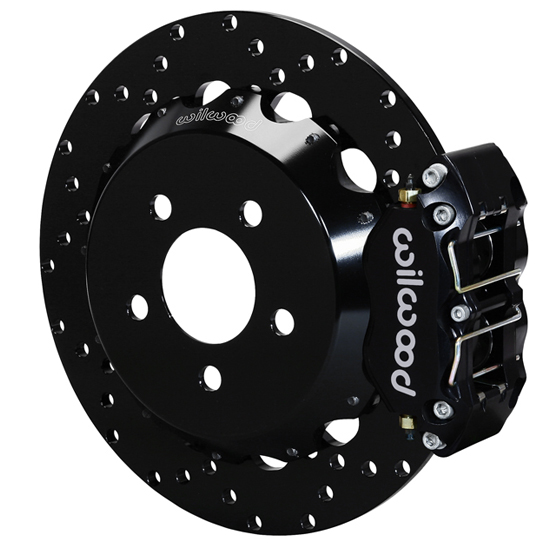

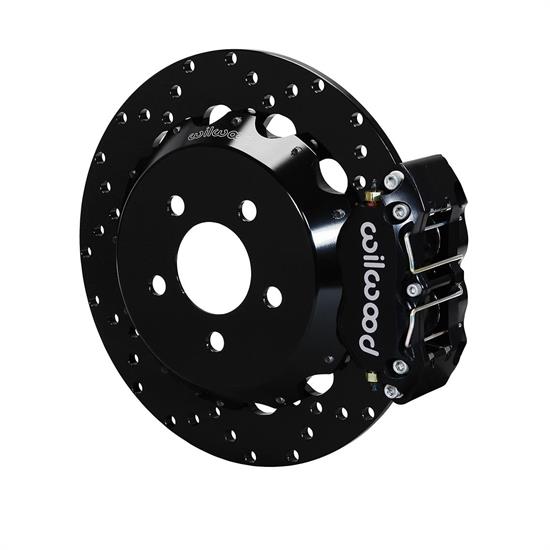

Wilwood 140-14106-D Dynapro Radial Rear Drag Brake Kit, Black
Wilwood 140-14106-D Dynapro Radial Rear Drag Brake Kit, Black

Wilwood 140-14106-D Dynapro Radial Rear Drag Brake Kit, Black

Rear Position, 5 on 4.5" Bolt Pattern, 12.90 Inch Rotor Diameter, Solid Rotor Type, Gray

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-14106-D Dynapro Radial Rear Drag Brake Kit, Black
Wilwood 140-14106-D Dynapro Radial Rear Drag Brake Kit, Black
Zoomed In Image
We estimate this item will ship on or before December 14th.
Part # 83514014106D
$1,299.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
5 on 4.5"
Rotor Diameter:
12.90 Inch
Rotor Type:
Solid
Caliper Pistons:
Four
Caliper Finish:
Type III Anodized
Color:
Gray
MFG. Part #:
140-14106-D
Minimum Recommended Wheel Diameter:
17 Inch
Rotor Thickness:
0.38"
Sold in Quantity:
Each
Mount Type:
Radial
Total Piston Area:
4.8 sq. in.
Piston Type:
Stainless
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Compound:
BP-20
Rotor Style:
Drilled
Caliper Type:
Narrow Dynapro Radial Mount
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
None
Bedded:
No
Balanced:
No
Hat Type:
Big Brake Hat - Flared Bell
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 x 4.50

Info

Wilwood introduces these amazing DynaPro4R Drag Race rear brake kits. Delivering high torque stopping power with a substantial weight savings over the OE brake components. Dynamic mount steel rotors weigh only 5.7 pounds each. They attach to the OE hubs with lightweight forged aluminum hats using our T-nut mounting system that allows the rotor to move independently of the hat during heat cycles. This eliminates stress at the mount points and the subsequent rotor distortion that can otherwise occur with fixed mount steel plate rotors.

Dynamic mount rotors also assure full release from the pads to run true and drag free down the track. Clamping force is provided by radial mount DynaPro 4R four piston aluminum calipers weighing in at only 4.1 pounds each. DP4R calipers feature stainless steel pistons, internal bore seals, stainless steel bridge wear plates, and allow easy access to the pads for service without removing the calipers from the mount. BP-20 compound SmartPads provide high response and holding power when cold, and resistance to fade when hot. The complete package mounts to the OE spindle with full bolt-on installation.

This kit is configured for drag racing only and is not recommended for street use. A minimum size 17” wheels are required along with a stainless steel braided flexline kit available separately.

  • Fits 2015-16 Mustangs
  • Rear brake kits
  • Black finish
  • Sold as kit

Installation Instructions (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
