Add to Cart
$1,904.99

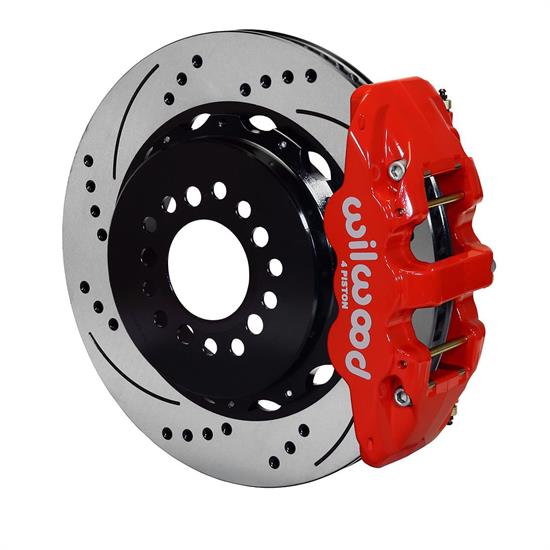

Wilwood 140-14068-DR AERO4 14 In Rear Brake Kit Parking Brake, Drilled
Wilwood 140-14068-DR AERO4 14 In Rear Brake Kit Parking Brake, Drilled

Wilwood 140-14068-DR AERO4 14 In Rear Brake Kit Parking Brake, Drilled

Rear Position, Multi: 5 on 5" | 4.75" | 4.50" Bolt Pattern, 14.25 Inch Rotor Diameter, Red

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-14068-DR AERO4 14 In Rear Brake Kit Parking Brake, Drilled
Wilwood 140-14068-DR AERO4 14 In Rear Brake Kit Parking Brake, Drilled
Zoomed In Image
We estimate this item will ship on or before October 24th.
Part # 83514014068DR
$1,904.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 3 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 5" | 4.75" | 4.50"
Rotor Diameter:
14.25 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
Yes
MFG. Part #:
140-14068-DR
Rotor Thickness:
1.1"
Finish:
Powder Coated
Hardware Included:
Yes
Sold in Quantity:
Each
Notes:
Kits will not fit AWD (All Wheel Drive), SRT-8, Police or Heavy Duty Brake option vehicles.
Offset:
0"
Mount Type:
Radial
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
11 sq. in.
Pad Volume:
5.2 cu. in.
Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
AERO4
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
72 Curved Vane
Bedded:
No
Balanced:
Yes
Hat Type:
Parking Brake Hat- Standard
Hat Finish:
Black E-Coat
Hat Bolt Circle 3:
5 x 5.00
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.53
Stud Diameter 3:
0.52"
Stud Diameter 2:
0.52"
Hat Material Type:
Aluminum
GTIN Code:
889545072143

Info

These AERO4 Big Brake Axle Kits from Wilwood replace the factory disc brakes and use the OE parking brake assemly as a compliment to front big brake upgrades on late model high performance vehicles. Get high capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. This kit will provide enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Installation Instructions (PDF)

Wheel Clearance (GIF)

Kit Summary:

  • Rear End Axle: OEM
  • Axle Offset: 0
  • Mount Type: Radial
  • Caliper Type: 4-Red Powder coated
  • Rotor Diameter: 14.25 Inch
  • Wheel Diameter: 18 Inch
Calipers120-13338-RD
  • Type: AERO4
  • Finish: Red Powder Coat
  • Piston Count: 4
  • Piston Type: Stainless
  • Mount Type: Radial
  • Pad Compound: BP-10

Rotors- 160-11310-BK160-11309-BK

  • Type: SRP Drilled Rotor
  • Style: SRP Drilled & Slotted
  • Surface Finish: Black Electro Coat
  • Material: Iron
  • Outside Diameter: 14.25"
  • Width: 1.1"
  • Vane Count: 72 CV
  • Design Type: SRP-BLK
  • Dynamically Balanced: Yes

Rotor Hats - 170-13904

  • Type: Parking Brake Hat - Standard
  • Material: Aluminum
  • Finish Color: Black E-Coat
  • Hat Offset: 1.34"
  • Bolt Circle 1: 5 x 4.53"
  • Bolt Circle 2: 5 x 4.75"
  • Bolt Circle 3: 5 x 5.00"
  • Stud Diameter BC 1: .63"
  • Stud Diameter BC 2: .52"
  • Stud Diameter BC 3: .52"

Application

  • Dodge Challenger 2014 R/T Classic
  • Dodge Challenger 2014 Rallye Redline
  • Dodge Challenger 2014-2015 SXT (STD Brakes)
  • Dodge Charger 2014-2015 Pursuit
  • Dodge Charger 2015 R/T
  • Dodge Charger 2014 R/T (AWD)
  • Dodge Charger 2014 R/T (RWD)
  • Dodge Charger 2014-2015 SE
  • Dodge Charger 2015 SXT
  • Dodge Charger 2014 SXT (AWD)
  • Dodge Charger 2014 SXT (RWD)
  • Dodge Charger 2014 SXT Plus
Some parts are not legal for use in California or other states with similar laws/regulations
