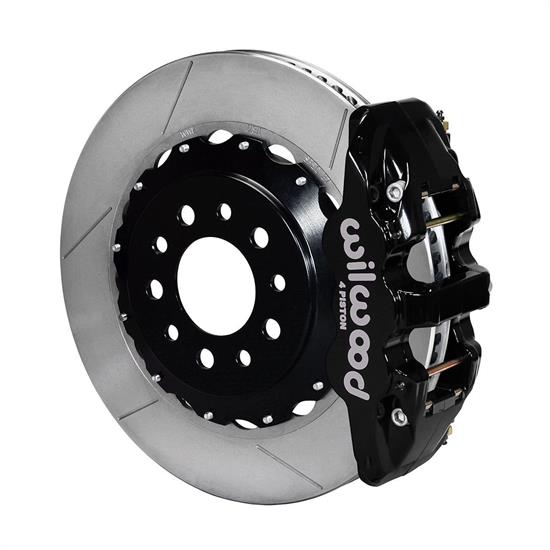

Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette

Wilwood 140-13698 AERO4 14.25 Inch Rear Brake Kit, 2014-Up C7 Corvette

0 Reviews | 0 Answered Questions
Out of Stock
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Wilwood 140-13698 AERO4 14.25 Inch Rear Brake Kit, 2014-Up C7 Corvette
X
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Wilwood 140-13698 AERO4 14.25 Rear Disc Brake Kit, 2014-Up Corvette
Zoomed In Image
Part # 83514013698
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Info

These AERO4 Big Brake Rear Axle Kits form Wilwood replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Installation Instructions (PDF)

Schematic (GIF)

Wheel Clearance (GIF)

Kit Summary:

  • Rear End Axle: OEM
  • Axle Offset: 0
  • Mount Type: Radial
  • Caliper Type: 4-Black Powder coated
  • Rotor Diameter: 14.25 Inch
  • Wheel Diameter: 18 Inch
Calipers- 120-13338-BK
  • Type: AERO4
  • Finish: Black Powder Coat
  • Piston Count: 4
  • Piston Type: Stainless
  • Mount Type: Radial
  • Pad Compound: BP-10

Rotors- 160-11312 , 160-11311

  • Type: GT 72 Curved Vane
  • Style: GT Slotted
  • Surface Finish: Plain
  • Material: Spec-37 Iron
  • Outside Diameter: 14.25"
  • Width: 1.1"
  • Vane Count: 72 CV
  • Design Type: GT
  • Dynamically Balanced: Yes

Rotor Hats - 170-11306

  • Type: Parking Brake Hat-Standard
  • Material: Iron
  • Finish Color: Black E-Coat
  • Hat Offset: .73"
  • Bolt Circle 1: 5 x 4.75"
  • Bolt Circle 2: 5 x 4.72"
  • Stud Diameter BC 1: .64"



Application

  • Chevrolet - Corvette 2014-2015 Stingray
  • Chevrolet - Corvette 2015 Z06
  • Chevrolet - Corvette 2014-2015 Z51

Important Messages:

  • This product is discontinued.
  • This item ships directly from the manufacturer. It may take an additional business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
  • This item 83514013698 is made to order. It will be shipped from our warehouse when it is produced.
Some parts are not legal for use in California or other states with similar laws/regulations
