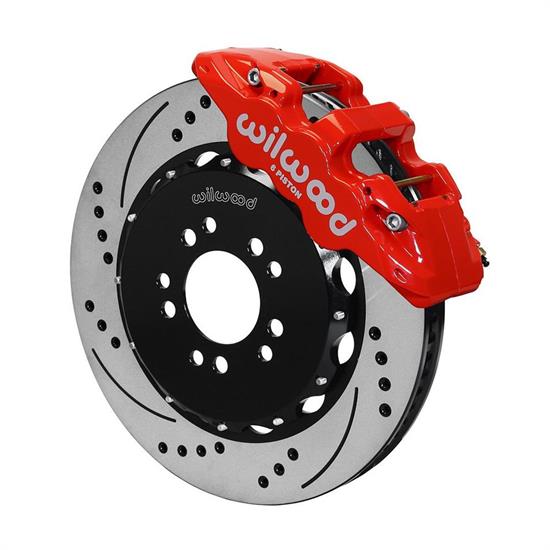

Wilwood 140-13697-DR AERO6 14.25 Front Disc Brake Kit, 14-Up Corvette
Wilwood 140-13697-DR AERO6 14.25 Front Disc Brake Kit, 14-Up Corvette

Wilwood 140-13697-DR AERO6 14.25 Inch Front Brake Kit, 2014-Up C7 Corvette

0 Reviews | 0 Answered Questions
Out of Stock
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13697-DR AERO6 14.25 Front Disc Brake Kit, 14-Up Corvette
Wilwood 140-13697-DR AERO6 14.25 Front Disc Brake Kit, 14-Up Corvette
Wilwood 140-13697-DR AERO6 14.25 Front Disc Brake Kit, 14-Up Corvette
Wilwood 140-13697-DR AERO6 14.25 Front Disc Brake Kit, 14-Up Corvette
Wilwood 140-13697-DR AERO6 14.25 Inch Front Brake Kit, 2014-Up C7 Corvette
X
Wilwood 140-13697-DR AERO6 14.25 Front Disc Brake Kit, 14-Up Corvette
Wilwood 140-13697-DR AERO6 14.25 Front Disc Brake Kit, 14-Up Corvette
Wilwood 140-13697-DR AERO6 14.25 Front Disc Brake Kit, 14-Up Corvette
Zoomed In Image
Part # 83514013697DR
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Info

These AERO6 calipers from Wilwood were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” to 14.25”rotors provide maximum cooling for sustained high heat durability.

Installation Instructions (PDF)

Schematic (GIF)

Wheel Clearance (GIF)

Kit Summary:

  • Spindle Type: Factory Disc Spindle
  • Mount Type: Radial
  • Caliper Type: 6-Red powder coated
  • Rotor Diameter: 14.25 Inch
  • Wheel Diameter: 18 Inch
Calipers- 120-13290-RD , 120-13289-RD
  • Type: AERO6
  • Finish: Red Powder Coat
  • Piston Count: 6
  • Piston Type: Stainless
  • Mount Type: Radial
  • Pad Compound: BP-20

Rotors- 160-11314-BK ,  160-11313-BK

  • Type: SRP Drilled Rotor
  • Style: SRP Drilled and Slotted
  • Surface Finish: Black Electro Coat
  • Material: Iron
  • Outside Diameter: 14.25"
  • Width: 1.25"
  • Vane Count: 72 CV
  • Design Type: SRP-BLK
  • Dynamically Balanced: Yes

Rotor Hats - 170-11804

  • Type: Big Brake Hat - Flared Bell
  • Material: Aluminum
  • Finish Color: Black E-Coat
  • Hat Offset: .54"
  • Bolt Circle 1: 5 x 4.50"
  • Stud Diameter BC 1: .52"

Application

  • Chevrolet - Corvette 2014-2015 Stingray
  • Chevrolet - Corvette 2015 Z06
  • Chevrolet - Corvette 2014-2015 Z51

Important Messages:

  • This product is discontinued.
  • This item ships directly from the manufacturer. It may take an additional business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
  • This item 83514013697DR is made to order. It will be shipped from our warehouse when it is produced.
Some parts are not legal for use in California or other states with similar laws/regulations
