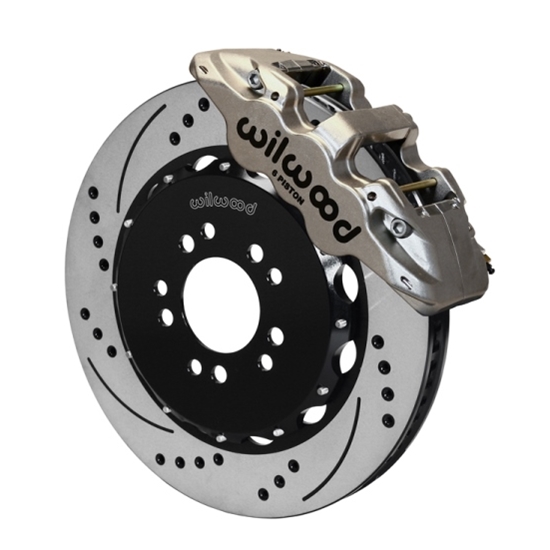

Wilwood 140-13697-DN AERO6 14.25 Inch Front Brake Kit
Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 14.25 Inch Rotor Diameter, Nickel
- This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
These AERO6 calipers from Wilwood were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” to 14.25”rotors provide maximum cooling for sustained high heat durability.
Wheel Clearance (GIF)
- Spindle Type: Factory Disc Spindle
- Mount Type: Radial
- Caliper Type: 6-Nickel Plate
- Rotor Diameter: 14.25 Inch
- Wheel Diameter: 18 Inch
- Type: AERO6
- Finish: Nickel Plate
- Piston Count: 6
- Piston Type: Stainless
- Mount Type: Radial
- Pad Compound: BP-20
Rotors- 160-11314-BK , 160-11313-BK
- Type:SRP Drilled Rotor
- Style: SRP Drilled and Slotted
- Surface Finish: Black Electrco Coat
- Material: Iron
- Outside Diameter: 14.25"
- Width: 1.25"
- Vane Count: 72 CV
- Design Type: SRP-BLK
- Dynamically Balanced: Yes
Rotor Hats - 170-11804
- Type: Big Brake Hat - Flared Bell
- Material: Aluminum
- Finish Color: Black E-Coat
- Hat Offset: .54"
- Bolt Circle 1: 5 x 4.50"
- Stud Diameter BC 1: .52"
- Chevrolet - Corvette 2014-2015 Stingray
- Chevrolet - Corvette 2015 Z06
- Chevrolet - Corvette 2014-2015 Z51
