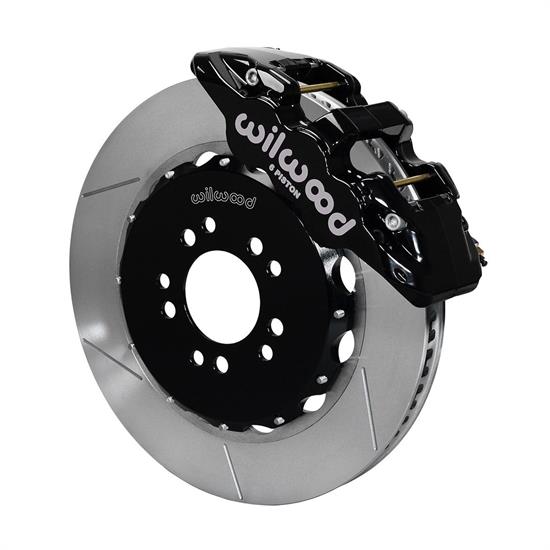

Wilwood 140-13697 AERO6 Big Brake Front Kit, 14.25 Inch Rotor
Wilwood 140-13697 AERO6 Big Brake Front Kit, 14.25 Inch Rotor

Wilwood 140-13697 AERO6 Big Brake Front Kit, 14.25 Inch Rotor

Front Position, Dual: 5 on 4.5"/4.75" Bolt Pattern, 14.25 Inch Rotor Diameter, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13697 AERO6 Big Brake Front Kit, 14.25 Inch Rotor
Wilwood 140-13697 AERO6 Big Brake Front Kit, 14.25 Inch Rotor
Zoomed In Image
We estimate this item will ship on or before August 28th.
Part # 83514013697
Save 10%
Add to Cart
Call to Order
Add to Buildlist

Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.


Bolt Pattern:
Dual: 5 on 4.5"/4.75"
Rotor Diameter:
14.25 Inch
Rotor Type:
Caliper Pistons:
Caliper Finish:
Powder Coated
MFG. Part #:
GTIN Code:


These AERO6 calipers from Wilwood were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, it’s the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUV’s, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Directional staggered vane 14.00” to 14.25”rotors provide maximum cooling for sustained high heat durability.

Installation Instructions (PDF)

Schematic (GIF)

Wheel Clearance (GIF)

Kit Summary:

  • Spindle Type: Factory Disc Spindle
  • Mount Type: Radial
  • Caliper Type: 6-black powder coated
  • Rotor Diameter: 14.25 Inch
  • Wheel Diameter: 18 Inch
Calipers- 120-13290-BK , 120-13289-BK
  • Type: AERO6
  • Finish: Black Powder Coat
  • Piston Count: 6
  • Piston Type: Stainless
  • Mount Type: Radial
  • Pad Compound: BP-20

Rotors- 160-11316 ,  160-11315

  • Type: GT 72 Curved Vane
  • Style: GT Slotted
  • Surface Finish: Plain
  • Material: Spec-37 Iron
  • Outside Diameter: 14.25"
  • Width: 1.25"
  • Vane Count: 72 CV
  • Design Type: GT
  • Dynamically Balanced: Yes

Rotor Hats - 170-11804

  • Type: Big Brake Hat - Flared Bell
  • Material: Aluminum
  • Finish Color: Black E-Coat
  • Hat Offset: .54"
  • Bolt Circle 1: 5 x 4.50"
  • Stud Diameter BC 1: .52"



  • Chevrolet - Corvette 2014-2015 Stingray
  • Chevrolet - Corvette 2015 Z06
  • Chevrolet - Corvette 2014-2015 Z51
Some parts are not legal for use in California or other states with similar laws/regulations
