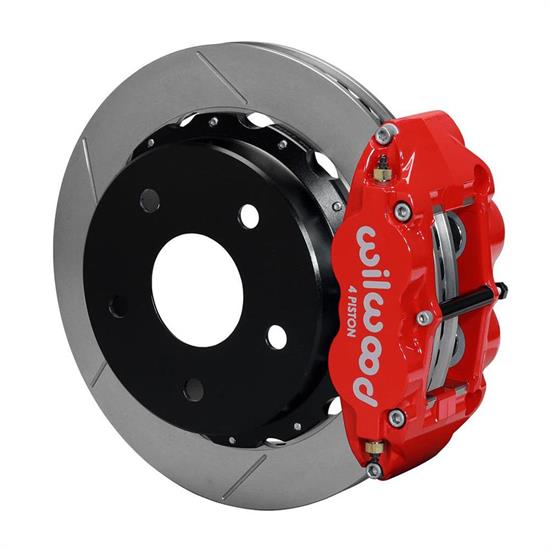

Wilwood 140-13665-R, Superlite 4R Rear Parking Brake Kit, 12.88 In
Wilwood 140-13665-R, Superlite 4R Rear Parking Brake Kit, 12.88 In

Wilwood 140-13665-R, Superlite 4R Rear Parking Brake Kit, 12.88 In

Rear Position, 5 on 5.5" Bolt Pattern, 14 Inch Rotor Diameter, Vented Rotor Type, Powder Coated

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13665-R, Superlite 4R Rear Parking Brake Kit, 12.88 In
Wilwood 140-13665-R, Superlite 4R Rear Parking Brake Kit, 12.88 In
Zoomed In Image
We estimate this item will ship on or before December 28th.
Part # 83514013665R
Save 10%
$1,494.99
$1,674.39
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
5 on 5.5"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
Parking Brake Provision:
Yes
MFG. Part #:
140-13665-R
GTIN Code:
889545048704

Info

These versions of Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for Bronco 76-77 rear axles with Big Ford New Style flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Each includes a high efficiency drum style parking brake assembly. FNSL4R four piston calipers, 12.88” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.

  • Rear End Axle: Big Ford New Style Bronco
  • Axle Offset 2.38 Inches
  • Mount Type: Radial
  • Wheel Diameter: 17 Inches
  • Caliper: 120-11782-RD
    • Type: Forged Narrow Superlite 4R
    • Finish: Red Powder Coat
    • Piston Count: 4
    • Piston Type: Stainless
    • Mount Type: Radial
    • Brake Pad Compound: BP-10
  • Rotor: 160-12962, 160-12961
    • Type: GT 48 Curved Vane
    • Style: GT Slotted
    • Surface Finish: Plain
    • Material: Spec-37 Iron
    • Diameter: 12.88"
    • Width: 1.1"
    • Vane Count: 48 CV
    • Design Type: GT
    • Dynamically Balanced
  • Rotor Hat: 170-13326
    • Type: Parking Brake Hat -  Standard
    • Material: Aluminum
    • Finish Color: Black E-Coat
    • Hat Offset: 1.54"
    • Bolt Circle: 5 x 5.50"
    • Stud Diameter: .64"

Note: Brake Kits are designed to fit OE Factory Spindles. Contact Speedway Motors if you are not using a factory spindle.

Assembly Instructions (PDF)

Wheel Clearance Diagram (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
