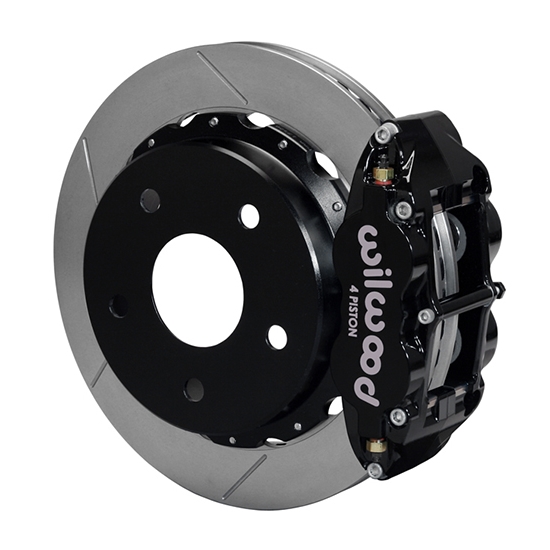

Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88

Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88

0 Reviews | 0 Answered Questions
Out of Stock
More Like This
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
X
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Wilwood 140-13665, Forged Superlite 4R Rear Parking Brake Kit, 12.88
Zoomed In Image
Part # 83514013665
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Info

These versions of Forged Narrow Superlite 4R rear disc kits provide the ultimate Big Brake solution for Bronco 76-77 rear axles with Big Ford New Style flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Each includes a high efficiency drum style parking brake assembly. FNSL4R four piston calipers, 12.88” two-piece rotors, and high performance BP-10 compound pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking.
  • Rear End Axle: Big Ford New Style Bronco
  • Axle Offset: 2.38 Inches
  • Wheel Diameter: 17 Inches
  • Caliper: 120-11782-BK
    • Type: Forged Narrow Superlite 4R
    • Finish: Black Powder Coat
    • Piston Count: 4
    • Piston Type: Stainless
    • Mount Type: Radial
    • Brake Pad Compound: BP-10
  • Rotor: 160-12962, 160-12961
    • Type: GT 48 Curved Vane
    • Style: GT Slotted
    • Surface Finish: Plain
    • Material: Spec-37 Iron
    • Diameter: 12.88"
    • Width: 1.1"
    • Vane Count: 48 CV
    • Design Type: GT
    • Dynamically Balanced
  • Rotor Hat: 170-13326
    • Type: Parking Brake Hat - Standard
    • Material: Aluminum
    • Finish Color: Black E-Coat
    • Hat Offset: 1.54"
    • Bolt Circle: 5 x 5.50"
    • Stud Diameter: .64"

Note: Brake Kits are designed to fit OE Factory Spindles. Contact Speedway Motors if you are not using a factory spindle.

Wilwood 140-13665 Installation Instructions (PDF)

Wheel Clearance Diagram (PDF)

Wilwood 140-13665 Brake Assembly Schematic

Important Messages:

  • This product is discontinued.
  • This item ships directly from the manufacturer. It may take an additional business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
  • This item 83514013665 is made to order. It will be shipped from our warehouse when it is produced.
Some parts are not legal for use in California or other states with similar laws/regulations
