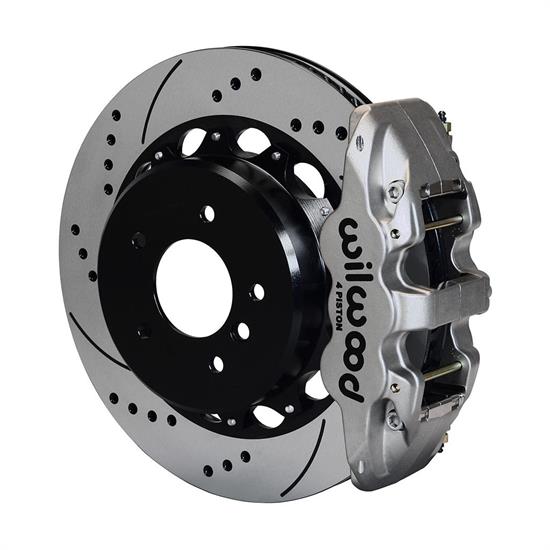

Wilwood 140-13583-DN AERO4 Rear Disc Parking Brake Kit, 14 Inch
Rear Position, 5 on 4.72" Bolt Pattern, 14 Inch Rotor Diameter, Vented Rotor Type, Nickel
- This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
This AERO4 Big Brake Rear Axle Kit replaces the factory disc brakes and uses the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. It get its high capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors, which are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. They enhance brake performance, increase durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.
- Rear End Axle:OEM
- Axle Offset: 0 Inches
- Wheel Diameter: 18 Inches
- Caliper: 120-13338-N
- Type: AERO 4
- Finish: Nickel Plate
- Piston Count: 4
- Piston Type: Stainless
- Mount Type: Radial
- Brake Pad Compound: BP-10
- Rotor: 160-8401-BK, 160-8400-BK
- Type: SRP Drilled Rotor
- Style: SRP Drilled and Slotted
- Surface Finish: Black Electro Coat
- Material: Iron
- Diameter: 14"
- Width: 1.1"
- Vane Count: 72 CV
- Design Type:SRP-BLK
- Dynamically Balanced
- Rotor Hat: 170-13585
- Type: Big Brake Dynamic Bobbin Mount Hat - Flared Bell
- Material: Aluminum
- Finish Color: Black E-Coat
- Hat Offset: 1.70"
- Bolt Circle: 5 x 4.72"
- Stud Diameter: .49"
Wheel Clearance Diagram (PDF)
