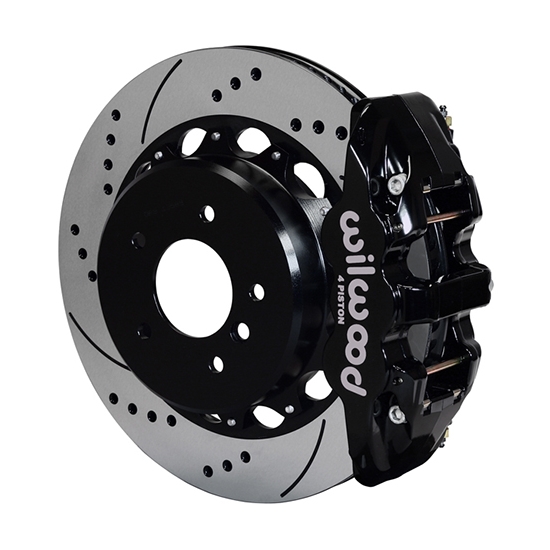

Wilwood 140-13583-D AERO4 Rear Disc Parking Brake Kit, 14 Inch
Wilwood 140-13583-D AERO4 Rear Disc Parking Brake Kit, 14 Inch

Wilwood 140-13583-D AERO4 Rear Disc Parking Brake Kit, 14 Inch

Rear Position, 5 on 4.72" Bolt Pattern, 14 Inch Rotor Diameter, Vented Rotor Type, Black

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13583-D AERO4 Rear Disc Parking Brake Kit, 14 Inch
Wilwood 140-13583-D AERO4 Rear Disc Parking Brake Kit, 14 Inch
Zoomed In Image
We estimate this item will ship on or before October 30th.
Part # 83514013583D
Save 10%
$1,904.99
$2,133.59
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
5 on 4.72"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Black
Parking Brake Provision:
Yes
MFG. Part #:
140-13583-D
GTIN Code:
889545020809

Info

These AERO4 Big Brake Rear Axle Kits replace the your factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. It has high capacity braking from the W4AR calipers, BP-10 compound pads, and oversized 14.00" rotors which are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

  • Rear End Axle: OEM
  • Axle Offset: 0 Inches
  • Wheel Diameter: 18 Inches
  • Caliper: 120-13338-BK
    • Type: AERO4
    • Finish: Black Powder Coat
    • Piston Count: 4
    • Piston Type: Stainless
    • Mount Type: Radial
    • Brake Pad Compound: BP-10
  • Rotor: 160-8401-BK, 160-8400-BK
    • Type: SRP Drilled Rotor
    • Style: SRP Drilled and Slotted
    • Surface Finish: Black Electro Coat
    • Material:  Iron
    • Diameter: 14"
    • Width: 1.1"
    • Vane Count: 72 CV
    • Design Type: SRP-BLK
    • Dynamically Balanced
  • Rotor Hat: 170-13585
    • Type: Big Brake Dynamic Bobbin Mount Hat - Flared Bell
    • Material: Aluminum
    • Finish Color: Black E-Coat
    • Hat Offset: 1.70"
    • Bolt Circle: 5 x 4.72"
    • Stud Diameter: .49"

83514013583D Assembly Instructions (PDF)

Wheel Clearance Diagram (PDF)
