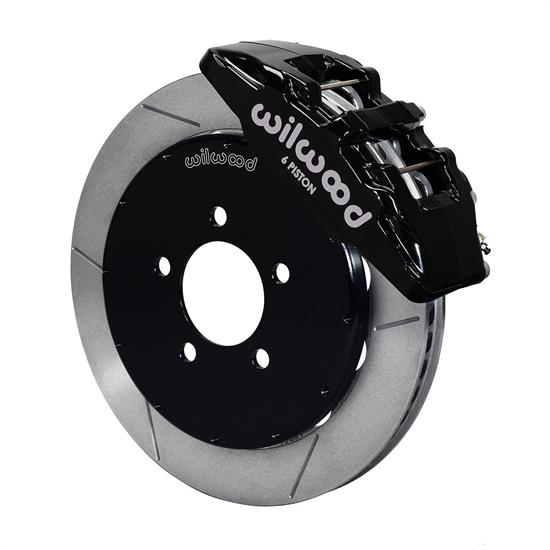

Wilwood 140-13581 Dynapro 6 Front Disc Brake Kit, 12.88 Inch, Black
Front Position, 5 on 4.5" Bolt Pattern, 12.88 Inch Rotor Diameter, Vented Rotor Type, Black
- This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.88” diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
- Spindle Type: Factory Disc Spindle
- Mount Type: Lug
- Wheel Diameter: 17 Inches
- Caliper: 120-10127 , 120-10126
- Type: Dynapro 6
- Finish: Black Powder Coat
- Piston Count:6
- Piston Type: Stainless
- Mount Type: Lug
- Brake Pad Compound: BP-10
- Rotor: 160-12962, 160-12961
- Type: GT 48 Curved Vane
- Style: GT Slotted
- Surface Finish: Plain
- Material: Spec-37 Iron
- Diameter: 12.88"
- Width: 1.1"
- Vane Count: 48 CV
- Design Type: GT
- Dynamically Balanced
Note: Brake Kits are designed to fit OE Factory Spindles. Contact Speedway Motors if you are not using a factory spindle.
Wheel Clearance Diagram (PDF)
Assembly Instructions (PDF)
- Mazda Mazda 3 2010-2011 Grand Touring
- Mazda Mazda 3 2012-2013 Grand Touring (2.5L)
- Mazda Mazda 3 2008-2009 GS (2.3L)
- Mazda Mazda 3 2010-2012 GS (2.5L)
- Mazda Mazda 3 2012-2013 GS-SKY (2.5L)
- Mazda Mazda 3 2012-2013 GT (2.5L)
- Mazda Mazda 3 2008-2009 GT (2.3L)
- Mazda Mazda 3 2010-2011 GT (2.5L)
- Mazda Mazda 3 2012-2013 GX (2.5L)
- Mazda Mazda 3 2008-2009 GX (2.3L)
- Mazda Mazda 3 2010-2011 GX (2.5L)
- Mazda Mazda 3 2004-2013 i (2.0L)
- Mazda Mazda 3 2010-2013 I Touring (2.0L)
- Mazda Mazda 3 2007-2013 Mazda-speed
- Mazda Mazda 3 2004-2009 S (2.3L)
- Mazda Mazda 3 2010-2013 S (2.5L)
- Mazda Mazda 3 2005 SP23 (2.3L)
- Mazda Mazda 3 2011 Sport GS (2.5L)
- Mazda Mazda 3 2011 Sport GT (2.5L)
- Mazda Mazda 3 2011 Sport GX (2.5L)
