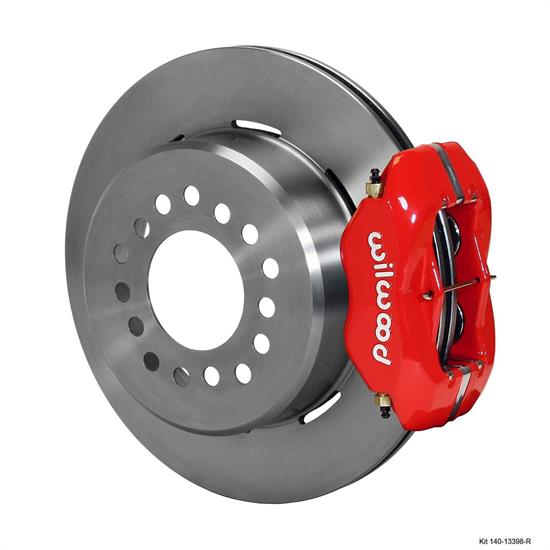

Wilwood 140-13398-R, Forged Dynalite Rear Parking Brake Kit Pro-Series
Rear Position, Multi: 5 on 5" | 4.75" | 4.50" Bolt Pattern, 12.19 Inch Rotor Diameter, Red
- This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
This group of FDLI Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
- Rear End Axle: AMC
- Axle Offset 2.6 Inches
- Mount Type: Lug
- Wheel Diameter: 15 Inches
- Caliper: 120-6806-RD
- Type: Forged Dynalite
- Finish: Red Powder Coat
- Piston Count: 4
- Piston Type: Stainless
- Mount Type: Lug
- Brake Pad Compound: BP-10
- Rotor: 160-7508
- Type: Ultralite HP 32 & Hat
- Style: Plain Face
- Surface Finish: Plain
- Material: Iron
- Diameter: 12.19"
- Width: .81"
- Vane Count: 32 V
- Design Type: ULHP
Fits the following applications:
- 1971-73 Javelin Disc Brake Spindle
- 1974 Javelin Disc Brake Spindle, Bendix Calipers
- 1974 Javelin Disc Brake Spindle, Kelsey Hayes Calipers
- 1971-74 Javelin AMX Disc Brake Spindle
- 1971-74 Javelin AMX Drum Brake Spindle
Note: Brake Kits are designed to fit OE Factory Spindles. Contact Speedway Motors if you are not using a factory spindle.
Assembly Instructions (PDF)
Wheel Clearance Diagram (PDF)
