Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series

Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series

0 Reviews | 0 Answered Questions
Out of Stock
More Like This
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
X
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Wilwood 140-13398, Forged Dynalite Rear Parking Brake Kit, Pro-Series
Zoomed In Image
Part # 83514013398
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Info

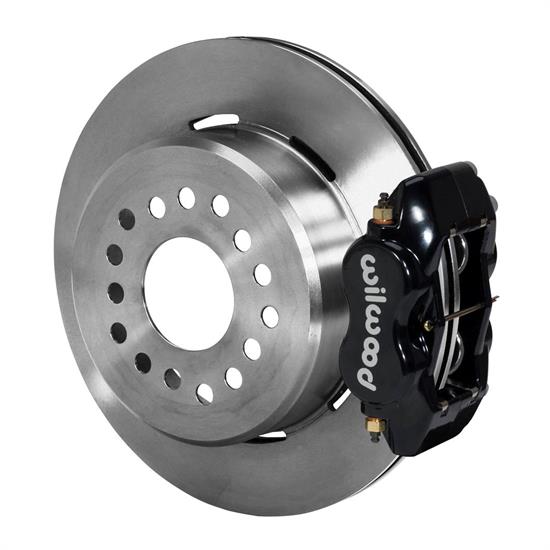

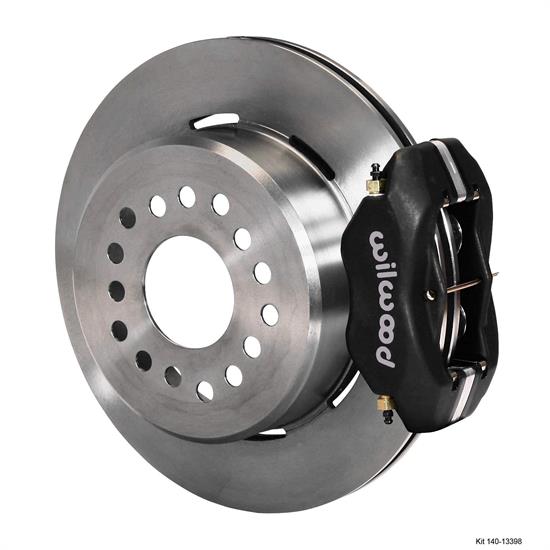

This group of FDLI Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged billet Dynalite four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

  • Rear End Axle: AMC
  • Axle Offset 2.6 Inches
  • Mount Type: Lug
  • Wheel Diameter: 15 Inches
  • Caliper: 120-6806
    • Type: Forged Dynalite
    • Finish: Black Anodize
    • Piston Count: 4
    • Piston Type: Stainless
    • Mount Type: Lug
    • Brake Pad Compound: BP-10
  • Rotor: 160-7508
    • Type: Ultralite HP 32 & Hat
    • Style: Plain Face
    • Surface Finish: Plain
    • Material: Iron
    • Diameter: 12.19"
    • Width: .81"
    • Vane Count: 32 V
    • Design Type: ULHP

Fits the following applications:

  • 1971-73 Javelin Disc Brake Spindle
  • 1974 Javelin Disc Brake Spindle, Bendix Calipers
  • 1974 Javelin Disc Brake Spindle, Kelsey Hayes Calipers
  • 1971-74 Javelin AMX Disc Brake Spindle
  • 1971-74 Javelin AMX Drum Brake Spindle

Note: Brake Kits are designed to fit OE Factory Spindles. Contact Speedway Motors if you are not using a factory spindle.

Assembly Instructions (PDF)

Wheel Clearance Diagram (PDF)

Important Messages:

  • This product is discontinued.
  • This item ships directly from the manufacturer. It may take an additional business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
  • This item 83514013398 is made to order. It will be shipped from our warehouse when it is produced.
Some parts are not legal for use in California or other states with similar laws/regulations
