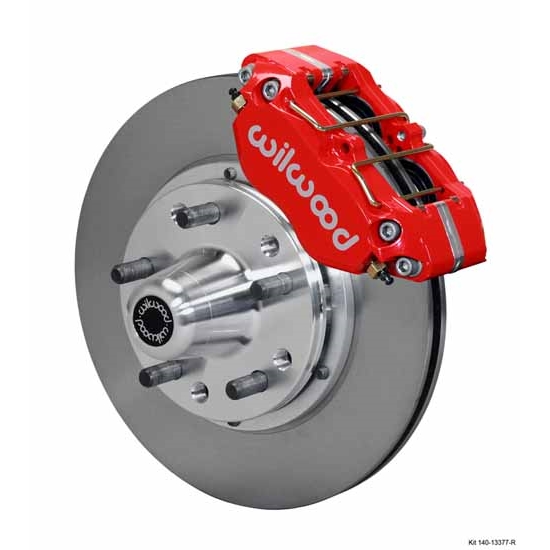

Wilwood 140-13377-R DP-DB Front Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-13377-R DP-DB Front Brake Kit, 1974-80 Pinto/Mustang II

Wilwood 140-13377-R DP-DB Front Brake Kit, 1974-80 Pinto/Mustang II

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13377-R DP-DB Front Brake Kit, 1974-80 Pinto/Mustang II
Wilwood 140-13377-R DP-DB Front Brake Kit, 1974-80 Pinto/Mustang II
Zoomed In Image
We estimate this item will ship on or before December 28th.
Part # 83514013377R
Save 7%
$792.99
$853.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
MFG. Part #:
140-13377-R
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Factory Disc Spindle
Mount Type:
Lug
Total Piston Area:
4.80 sq. in.
Piston Type:
Aluminum
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Compound:
BP-10
Rotor Style:
Plain Face
Caliper Type:
Dynapro Dust Boot
Rotor Finish:
Natural
Rotor Material Type:
Iron
Vane Count:
30 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545020274

Info

Wilwood's new limited offset DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

  • 1974-78 Ford Mustang II
  • 1974-80 Ford Pinto
  • 1975-80 Mercury Bobcat
  • Magnum Force 3.50" Drop Spindle (74-78 Mustang II)
  • Magnum Force 1.50" Drop Spindle (74-78 Mustang II)
Some parts are not legal for use in California or other states with similar laws/regulations
