Add to Cart
$1,021.99
$909.99

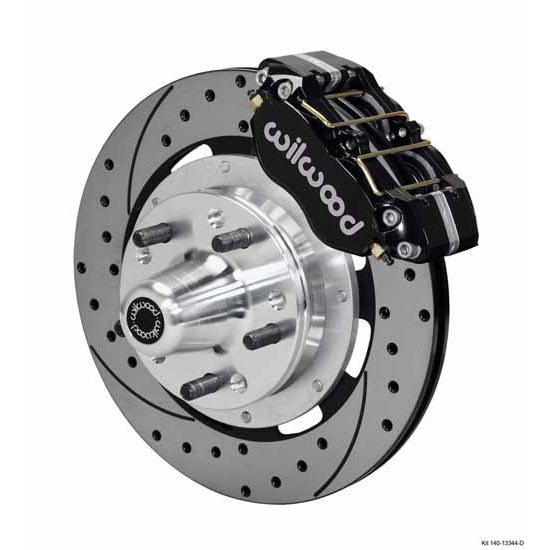

Wilwood 140-13344-D DP-DB Front Disc Brake Kit, 1965-70 Ford/Merc
Wilwood 140-13344-D DP-DB Front Disc Brake Kit, 1965-70 Ford/Merc

Wilwood 140-13344-D DP-DB Front Disc Brake Kit, 1965-70 Ford/Merc

Universal Fit, 12.19 Inch Rotor Diameter, Vented Rotor Type, Four Caliper Pistons

0 Reviews | 0 Answered Questions
In Stock
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13344-D DP-DB Front Disc Brake Kit, 1965-70 Ford/Merc
Wilwood 140-13344-D DP-DB Front Disc Brake Kit, 1965-70 Ford/Merc
Zoomed In Image
Part # UP87897
Save 10%
$909.99
$1,021.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.

Details

Rotor Diameter:
12.19 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Factory Disc & Drum Spindles
Mount Type:
Lug
OE Hub Offset:
0.09"
Total Piston Area:
4.80 sq. in.
Piston Type:
Aluminum
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Compound:
BP-10
Rotor Style:
Drilled and Slotted
Caliper Type:
Dynapro Dust Boot
Rotor Finish:
Black E-Coat
Rotor Material Type:
Spec-37 Iron
Vane Count:
32 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545020090

Info

This is Garage Sale priced because it is an open box item.

DP-DB Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynapro Dust Boot calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

1965 Ford Falcon Disc Brake V-8 Spindle Only
1965 Ford Falcon Drum Brake V-8 Spindle Only
1965 Ford Mustang Disc Brake V-8 Spindle Only
1965 Ford Mustang Drum Brake V-8 Spindle Only
1965 Ford Ranchero Disc Brake V-8 Spindle Only
1965 Ford Ranchero Drum Brake V-8 Spindle Only
1965 Mercury Comet Disc Brake V-8 Spindle Only
1965 Mercury Comet Drum Brake V-8 Spindle Only
1966 Ford Fairlane Disc Brake Spindle
1966 Ford Fairlane Drum Brake Front Spindle
1966 Ford Falcon Disc Brake V-8 Spindle Only
1966 Ford Falcon Drum Brake V-8 Spindle Only
1966 Ford Mustang Disc Brake V-8 Spindle Only
1966 Ford Mustang Drum Brake V-8 Spindle Only
1966 Ford Ranchero Disc Brake Spindle
1966 Ford Ranchero Drum Brake Front Spindle
1966 Mercury Comet Disc Brake V-8 Spindle Only
1966 Mercury Comet Drum Brake V-8 Spindle Only
1967 Ford Fairlane Disc Brake Spindle
1967 Ford Fairlane Drum Brake Front Spindle
1967 Ford Falcon Disc Brake Spindle
1967 Ford Falcon Drum Brake Front Spindle
1967 Ford Mustang Disc Brake Spindle
1967 Ford Mustang Drum Brake Front Spindle
1967 Ford Ranchero Disc Brake Spindle
1967 Ford Ranchero Drum Brake Front Spindle
1967 Mercury Comet Disc Brake Spindle
1967 Mercury Comet Drum Brake Front Spindle
1967 Mercury Cougar Disc Brake Spindle
1967 Mercury Cougar Drum Brake Front Spindle
1967 Mercury Cyclone Disc Brake Spindle
1967 Mercury Cyclone Drum Brake Front Spindle
1968 Ford Fairlane Disc Brake Spindle
1968 Ford Fairlane Drum Brake Front Spindle
1968 Ford Falcon Disc Brake Spindle
1968 Ford Falcon Drum Brake Front Spindle
1968 Ford Mustang Disc Brake Spindle
1968 Ford Mustang Drum Brake Front Spindle
1968 Ford Ranchero Disc Brake Spindle
1968 Ford Ranchero Drum Brake Front Spindle
1968 Ford Torino Disc Brake Spindle
1968 Ford Torino Drum Brake Front Spindle
1968 Mercury Comet Disc Brake Spindle
1968 Mercury Comet Drum Brake Front Spindle
1968 Mercury Cougar Disc Brake Spindle
1968 Mercury Cougar Drum Brake Front Spindle
1968 Mercury Cyclone Disc Brake Spindle
1968 Mercury Cyclone Drum Brake Front Spindle
1968 Mercury Montego Disc Brake Spindle
1968 Mercury Montego Drum Brake Front Spindle
1969 Ford Fairlane Disc Brake Spindle
1969 Ford Fairlane Drum Brake Front Spindle
1969 Ford Falcon Disc Brake Spindle
1969 Ford Falcon Drum Brake Front Spindle
1969 Ford Mustang Disc Brake Spindle
1969 Ford Mustang Drum Brake Front Spindle
1969 Ford Ranchero Disc Brake Spindle
1969 Ford Ranchero Drum Brake Front Spindle
1969 Ford Torino Disc Brake Spindle
1969 Ford Torino Drum Brake Front Spindle
1969 Mercury Comet Disc Brake Spindle
1969 Mercury Comet Drum Brake Front Spindle
1969 Mercury Cougar Disc Brake Spindle
1969 Mercury Cougar Drum Brake Front Spindle
1969 Mercury Cyclone Disc Brake Spindle
1969 Mercury Cyclone Drum Brake Front Spindle
1969 Mercury Montego Disc Brake Spindle
1969 Mercury Montego Drum Brake Front Spindle
1970 Ford Falcon Drum Brake Front thru 8/24/69
1970 Ford Maverick Drum Brake Front thru 8/24/69
1970 Ford Mustang Disc Brake GT350 & 500 only

NO WARRANTY, NO RETURNS ON GARAGE SALE ITEMS

Specs

Rotor Diameter:
12.19
Rotor Type:
SRP Drilled Rotor
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Rotor Construction:
SRP-BLK
Stud Diameter:
1/2-20"
Spindle Type:
Factory Disc & Drum Spindles
Mount Type:
Lug
OE Hub Offset:
0.09"
Total Piston Area:
4.80 sq. in.
Piston Type:
Aluminum
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Compound:
BP-10
Rotor Style:
SRP Drilled & Slotted
Caliper Type:
Dynapro Dust Boot
Rotor Surface Finish:
Black E-Coat
Rotor Material Type:
Iron
Rotor Width:
0.81"
Vane Count:
32 V
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545020090
Some parts are not legal for use in California or other states with similar laws/regulations
