Street Race Truck More... The Toolbox
Add to Cart
$867.99
$804.99

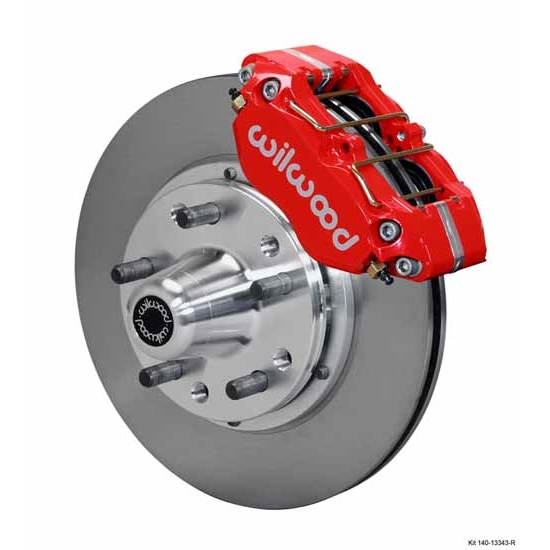

Wilwood 140-13343-R DP-DB Pro Series Front Brake Kit, 65-70 Ford/Merc
Wilwood 140-13343-R DP-DB Pro Series Front Brake Kit, 65-70 Ford/Merc

Wilwood 140-13343-R DP-DB Pro Series Front Brake Kit, 65-70 Ford/Merc

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 11 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13343-R DP-DB Pro Series Front Brake Kit, 65-70 Ford/Merc
Wilwood 140-13343-R DP-DB Pro Series Front Brake Kit, 65-70 Ford/Merc
Zoomed In Image
We estimate this item will ship on or before October 30th.
Part # 83514013343R
Save 7%
$804.99
$867.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
11 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Color:
Red
MFG. Part #:
140-13343-R
Rotor Thickness:
0.81"
Stud Diameter:
1/2-20"
Spindle Type:
Factory Disc & Drum Spindles
Mount Type:
Lug
OE Hub Offset:
0.09"
Total Piston Area:
4.80 sq. in.
Piston Type:
Aluminum
Pad Area:
6.36 sq. in.
Pad Volume:
2.1 cu. in.
Compound:
BP-10
Rotor Style:
Plain Face
Caliper Type:
Dynapro Dust Boot
Rotor Finish:
Natural
Rotor Material Type:
Iron
Vane Count:
30 Straight Vane
Bedded:
No
Balanced:
No
Stud Diameter 2:
1/2-20"
GTIN Code:
889545020076

Info

Wilwood's new limited offset DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable forged billet Dynapro Dust Boot caliper, these kits were developed for applications or locations that require or prefer a dust-booted piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

1965 Ford Falcon Disc Brake V-8 Spindle Only
1965 Ford Falcon Drum Brake V-8 Spindle Only
1965 Ford Mustang Disc Brake V-8 Spindle Only
1965 Ford Mustang Drum Brake V-8 Spindle Only
1965 Ford Ranchero Disc Brake V-8 Spindle Only
1965 Ford Ranchero Drum Brake V-8 Spindle Only
1965 Mercury Comet Disc Brake V-8 Spindle Only
1965 Mercury Comet Drum Brake V-8 Spindle Only
1966 Ford Fairlane Disc Brake Spindle
1966 Ford Fairlane Drum Brake Front Spindle
1966 Ford Falcon Disc Brake V-8 Spindle Only
1966 Ford Falcon Drum Brake V-8 Spindle Only
1966 Ford Mustang Disc Brake V-8 Spindle Only
1966 Ford Mustang Drum Brake V-8 Spindle Only
1966 Ford Ranchero Disc Brake Spindle
1966 Ford Ranchero Drum Brake Front Spindle
1966 Mercury Comet Disc Brake V-8 Spindle Only
1966 Mercury Comet Drum Brake V-8 Spindle Only
1967 Ford Fairlane Disc Brake Spindle
1967 Ford Fairlane Drum Brake Front Spindle
1967 Ford Falcon Disc Brake Spindle
1967 Ford Falcon Drum Brake Front Spindle
1967 Ford Mustang Disc Brake Spindle
1967 Ford Mustang Drum Brake Front Spindle
1967 Ford Ranchero Disc Brake Spindle
1967 Ford Ranchero Drum Brake Front Spindle
1967 Mercury Comet Disc Brake Spindle
1967 Mercury Comet Drum Brake Front Spindle
1967 Mercury Cougar Disc Brake Spindle
1967 Mercury Cougar Drum Brake Front Spindle
1967 Mercury Cyclone Disc Brake Spindle
1967 Mercury Cyclone Drum Brake Front Spindle
1968 Ford Fairlane Disc Brake Spindle
1968 Ford Fairlane Drum Brake Front Spindle
1968 Ford Falcon Disc Brake Spindle
1968 Ford Falcon Drum Brake Front Spindle
1968 Ford Mustang Disc Brake Spindle
1968 Ford Mustang Drum Brake Front Spindle
1968 Ford Ranchero Disc Brake Spindle
1968 Ford Ranchero Drum Brake Front Spindle
1968 Ford Torino Disc Brake Spindle
1968 Ford Torino Drum Brake Front Spindle
1968 Mercury Comet Disc Brake Spindle
1968 Mercury Comet Drum Brake Front Spindle
1968 Mercury Cougar Disc Brake Spindle
1968 Mercury Cougar Drum Brake Front Spindle
1968 Mercury Cyclone Disc Brake Spindle
1968 Mercury Cyclone Drum Brake Front Spindle
1968 Mercury Montego Disc Brake Spindle
1968 Mercury Montego Drum Brake Front Spindle
1969 Ford Fairlane Disc Brake Spindle
1969 Ford Fairlane Drum Brake Front Spindle
1969 Ford Falcon Disc Brake Spindle
1969 Ford Falcon Drum Brake Front Spindle
1969 Ford Mustang Disc Brake Spindle
1969 Ford Mustang Drum Brake Front Spindle
1969 Ford Ranchero Disc Brake Spindle
1969 Ford Ranchero Drum Brake Front Spindle
1969 Ford Torino Disc Brake Spindle
1969 Ford Torino Drum Brake Front Spindle
1969 Mercury Comet Disc Brake Spindle
1969 Mercury Comet Drum Brake Front Spindle
1969 Mercury Cougar Disc Brake Spindle
1969 Mercury Cougar Drum Brake Front Spindle
1969 Mercury Cyclone Disc Brake Spindle
1969 Mercury Cyclone Drum Brake Front Spindle
1969 Mercury Montego Disc Brake Spindle
1969 Mercury Montego Drum Brake Front Spindle
1970 Ford Falcon Drum Brake Front thru 8/24/69
1970 Ford Maverick Drum Brake Front thru 8/24/69
1970 Ford Mustang Disc Brake GT350 & 500 only
Some parts are not legal for use in California or other states with similar laws/regulations
