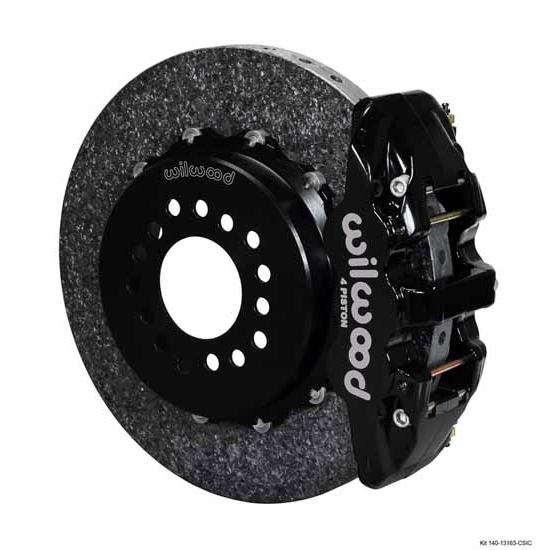

Wilwood 140-13163-CSIC AERO4 Dynamic Rear Parking Brake Kit, Big Ford
Wilwood 140-13163-CSIC AERO4 Dynamic Rear Parking Brake Kit, Big Ford

Wilwood 140-13163-CSIC AERO4 Dynamic Rear Parking Brake Kit, Big Ford

Ford 9", Rear Position, Multi: 5 on 4.5"/4.75"/5" Bolt Pattern, 14 Inch Rotor Diameter

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13163-CSIC AERO4 Dynamic Rear Parking Brake Kit, Big Ford
Wilwood 140-13163-CSIC AERO4 Dynamic Rear Parking Brake Kit, Big Ford
Zoomed In Image
We estimate this item will ship on or before August 29th.
Part # 83514013163CSIC
$6,218.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
Multi: 5 on 4.5"/4.75"/5"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
Parking Brake Provision:
Yes
MFG. Part #:
140-13163-CSIC
Rotor Thickness:
1.1"
Stud Diameter:
0.52"
Offset:
2.36"
Mount Type:
Radial
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
11.00 sq. in.
Pad Volume:
5.2 cu. in.
Compound:
PCM
Rotor Style:
Plain Face
Caliper Type:
AERO4
Rotor Finish:
Natural
Rotor Material Type:
Carbon Ceramic
Vane Count:
24 Straight Vane
Bedded:
No
Balanced:
No
Hat Type:
Parking Brake Hat - Dynamic Bobbin Mount
Hat Finish:
Black E-Coat
Hat Bolt Circle 3:
5 x 5.00
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.50
Stud Diameter 3:
0.52"
Stud Diameter 2:
0.52"
Hat Material Type:
Aluminum
Hat Offset Dimension:
1.54"
GTIN Code:
889545019049
Ford Bearing End Style:
Big Ford

Info

AERO4 WCCD Carbon-Ceramic Rotor Rear Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood's exclusive Bobbin Mounting System. AERO4 WCCD kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with internal shoe backing plates for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant Quick-Silver Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00" WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood's proprietary integrated anti-rattle Bobbin Mounting System. WCCD rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

Installation Instructions (PDF)

Wheel Clearance Diagram

Some parts are not legal for use in California or other states with similar laws/regulations
