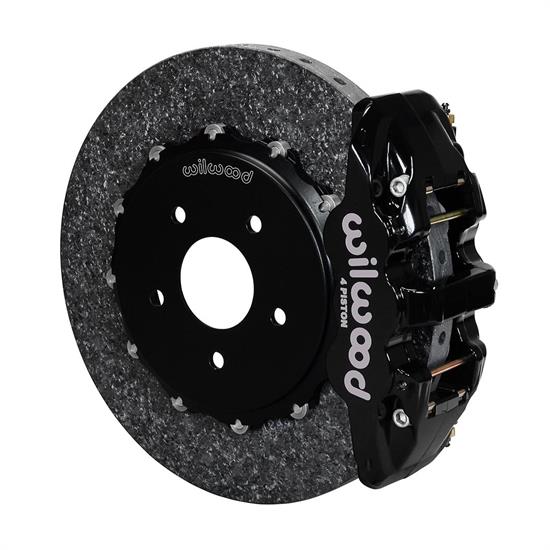

Wilwood 140-13161-CSIC AERO4 Rear Brake Kit, 2004-Up Corvette/Cadillac
Wilwood 140-13161-CSIC AERO4 Rear Brake Kit, 2004-Up Corvette/Cadillac

Wilwood 140-13161-CSIC AERO4 Rear Brake Kit, 2004-Up Corvette/Cadillac

Rear Position, 5 on 4.75" Bolt Pattern, 14 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13161-CSIC AERO4 Rear Brake Kit, 2004-Up Corvette/Cadillac
Wilwood 140-13161-CSIC AERO4 Rear Brake Kit, 2004-Up Corvette/Cadillac
Zoomed In Image
We estimate this item will ship on or before July 3rd.
Part # 83514013161CSIC
$6,218.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Rear
Bolt Pattern:
5 on 4.75"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Four
Caliper Finish:
Powder Coated
MFG. Part #:
140-13161-CSIC
Rotor Thickness:
1.1"
Stud Diameter:
0.52"
Mount Type:
Radial
Total Piston Area:
1.98 sq. in.
Piston Type:
Stainless
Pad Area:
11.00 sq. in.
Pad Volume:
5.2 cu. in.
Compound:
PCM
Rotor Style:
Plain Face
Caliper Type:
AERO4
Rotor Finish:
Natural
Rotor Material Type:
Carbon Ceramic
Vane Count:
24 Straight Vane
Bedded:
No
Balanced:
No
Hat Type:
Parking Brake Hat - Dynamic Bobbin Mount
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 x 4.75
Hat Material Type:
Aluminum
Hat Offset Dimension:
0.66"
GTIN Code:
889545018981

Info

AERO4 WCCD Carbon-Ceramic Rotor Rear OE Parking Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood's exclusive Bobbin Mounting System. AERO4 WCCD kits are engineered to maximize braking capacity inside custom wheels. Rear parking brake kits offer a simple bolt-on installation with OE original internal shoe parking brakes for outstanding holding power and are fully compatible with ABS and OE master cylinder output. AERO4 calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant Quick-Silver Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00" WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood's proprietary integrated anti-rattle Bobbin Mounting System. WCCD rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

  • Cadillac XLR 2004-2010 All
  • Chevrolet Corvette 2013 427
  • Chevrolet Corvette 2009-2013 Base
  • Chevrolet Corvette 1997-2004 C-5 & Z06
  • Chevrolet Corvette 2005-2008 C-6 - Base
  • Chevrolet Corvette 2006-2008 C-6 - Z06
  • Chevrolet Corvette 2010-2013 Grand Sport
  • Chevrolet Corvette 2009-2013 Z06
  • Chevrolet Corvette 2011 Z06 Carbon
  • Chevrolet Corvette 2009-2013 ZR1
  • Factory Five Racing GTM Supercar 2010-9998 C-5 / C-6 Spindle & Rear End
Some parts are not legal for use in California or other states with similar laws/regulations
