Add to Cart
$6,218.99

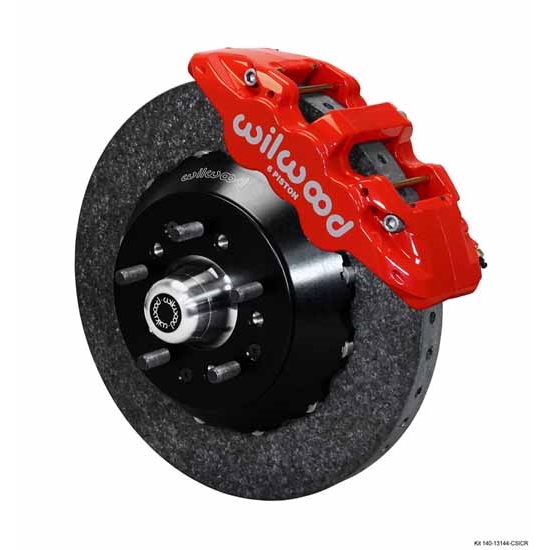

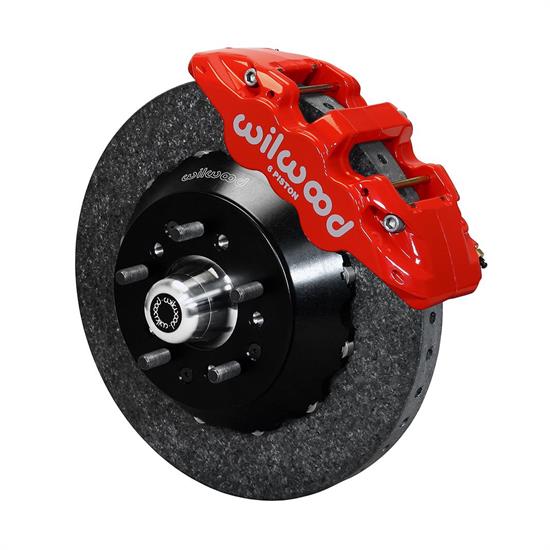

Wilwood 140-13144-CSICR AERO6 Dynamic Front Disc Brake Kit, 1964-74 GM
Wilwood 140-13144-CSICR AERO6 Dynamic Front Disc Brake Kit, 1964-74 GM

Wilwood 140-13144-CSICR AERO6 Dynamic Front Disc Brake Kit, 1964-74 GM

Front Position, Dual: 5 on 4.5"/4.75" Bolt Pattern, 14 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-13144-CSICR AERO6 Dynamic Front Disc Brake Kit, 1964-74 GM
Wilwood 140-13144-CSICR AERO6 Dynamic Front Disc Brake Kit, 1964-74 GM
Zoomed In Image
We estimate this item will ship on or before August 28th.
Part # 83514013144CSICR
$6,218.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5"/4.75"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
MFG. Part #:
140-13144-CSICR
Rotor Thickness:
1.25"
Stud Diameter:
0.52"
Spindle Type:
Factory Disc & Drum Spindles
Mount Type:
Radial
OE Hub Offset:
0.38"
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
11.00 sq. in.
Pad Volume:
5.2 cu. in.
Compound:
PCM
Rotor Style:
Plain Face
Caliper Type:
AERO6
Rotor Finish:
Natural
Rotor Material Type:
Carbon Ceramic
Vane Count:
24 Straight Vane
Bedded:
No
Balanced:
No
Hat Type:
Big Brake Dynamic Bobbin Mount Hat - Flared Bell
Hat Finish:
Black E-Coat
Hat Bolt Circle 1:
5 x 4.75
Hat Material Type:
Aluminum
Hat Offset Dimension:
1.74"
GTIN Code:
889545018912

Info

AERO6 WCCD Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood's exclusive Bobbin Mounting System. AERO6 WCCD kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. W6AR calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant Quick-Silver Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00" WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood's proprietary integrated anti-rattle Bobbin Mounting System. WCCD rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

  • Buick Apollo 1973-1974 Disc Brake Spindle
  • Buick Apollo 1973-1974 Drum Brake Front
  • Buick Gran Sport 1965-1966 All
  • Buick Gran Sport 1967-1972 Disc Brake Spindle
  • Buick Gran Sport 1967-1970 Drum Brake Front
  • Buick Skylark 1964-1966 All
  • Buick Skylark 1967-1972 Disc Brake Spindle
  • Buick Skylark 1967-1970 Drum Brake Spindle
  • Buick Special 1964-1966 All
  • Buick Special 1967-1972 Disc Brake Spindle
  • Buick Special 1967-1972 Drum Brake Spindle
  • Buick Sportwagon 1964-1966 All
  • Buick Sportwagon 1967-1972 Disc Brake Spindle
  • Buick Sportwagon 1967-1970 Drum Brake Front
  • Chevrolet Camaro 1967-1969 Disc Brake Spindle
  • Chevrolet Camaro 1967-1969 Drum Brake Front
  • Chevrolet Camaro 1968-1969 Z/28 w/ 4 Wheel Disc
  • Chevrolet Chevelle 1964 All
  • Chevrolet Chevelle 1967-1972 Disc Brake Spindle
  • Chevrolet Chevelle 1967-1972 Drum Brake Front
  • Chevrolet Chevelle 1965-1966 Drum Brake Spindle
  • Chevrolet Chevy II 1964 All
  • Chevrolet Chevy II 1967-1968 Disc Brake Spindle
  • Chevrolet Chevy II 1966-1968 Drum Brake Front
  • Chevrolet Chevy II 1965 Drum Brake Spindle
  • Chevrolet El Camino 1964 All
  • Chevrolet El Camino 1967-1972 Disc Brake Spindle
  • Chevrolet El Camino 1965-1972 Drum Brake Spindle
  • Chevrolet Monte Carlo 1970-1972 Disc Brake Spindle
  • Chevrolet Nova 1969-1974 Disc Brake Spindle
  • Chevrolet Nova 1969-1974 Drum Brake Front
  • GMC Sprint 1971-1972 Disc Brake Spindle
  • GMC Sprint 1971-1972 Drum Brake Spindle
  • Oldsmobile 442 1967-1972 Disc Brake Spindle
  • Oldsmobile 442 1970-1972 w/ O.A.I. Drum Brake Spindles
  • Oldsmobile Cutlass 1964-1966 All
  • Oldsmobile Cutlass 1967-1972 Disc Brake Spindle
  • Oldsmobile Cutlass 1967-1972 Drum Brake Spindle
  • Oldsmobile Cutlass 1970-1972 w/ O.A.I. Drum Brake Spindles
  • Oldsmobile Cutlass Cruiser 1968-1972 Disc Brake Spindle
  • Oldsmobile Cutlass Cruiser 1968-1972 Drum Brake Spindle
  • Oldsmobile F85 1964-1966 All
  • Oldsmobile F85 1967-1972 Disc Brake Spindle
  • Oldsmobile F85 1967-1969 Drum Brake Spindle
  • Oldsmobile F85 1970-1972 Drum Brake Spindle w/o O.A.I
  • Oldsmobile F85 1970-1972 w/ O.A.I. Drum Brake Spindles
  • Oldsmobile Omega 1973-1974 Disc Brake Spindle
  • Oldsmobile Omega 1973-1974 Drum Brake Front
  • Oldsmobile Vista Cruiser 1964-1966 All
  • Oldsmobile Vista Cruiser 1967-1972 Disc Brake Spindle
  • Oldsmobile Vista Cruiser 1967-1972 Drum Brake Spindle
  • Pontiac Acadian 1964-1966 All
  • Pontiac Acadian 1967-1971 Disc Brake Spindle
  • Pontiac Acadian 1967-1971 Drum Brake Spindle
  • Pontiac Beaumont 1964-1966 All
  • Pontiac Beaumont 1967-1969 Disc Brake Spindle
  • Pontiac Beaumont 1967-1969 Drum Brake Spindle
  • Pontiac Firebird 1967-1969 Disc Brake Spindle
  • Pontiac Firebird 1967-1969 Drum Brake Spindle
  • Pontiac Grand Prix 1969-1972 Disc Brake Spindle
  • Pontiac Grand Prix 1969 Drum Brake Spindle
  • Pontiac GTO 1964-1966 All
  • Pontiac GTO 1967-1972 Disc Brake Spindle
  • Pontiac GTO 1967-1971 Drum Brake Spindle
  • Pontiac LeMans 1964-1966 All
  • Pontiac LeMans 1967-1972 Disc Brake Spindle
  • Pontiac LeMans 1967-1972 Drum Brake Spindle
  • Pontiac Tempest 1964-1966 All
  • Pontiac Tempest 1967-1972 Disc Brake Spindle
  • Pontiac Tempest 1967-1972 Drum Brake Spindle
  • Pontiac Ventura II 1971-1974 Disc Brake Spindle
  • Pontiac Ventura II 1971-1974 Drum Brake Front
  • Ridetech 1963-1979 C2/C3 Corvette 9999 w/ Ridetech Spindle # 11009300
  • Ridetech 1964-1966 Mustang 9999 w/ Ridetech Spindle # 11009300
  • Ridetech 1964-1972 GM A Body 9999 w/ Ridetech Spindle # 11009300
  • Ridetech 1967-1969 GM F Body 9999 w/ Ridetech Spindle # 11009300
  • Ridetech 1968-1974 GM X Body 9999 w/ Ridetech Spindle # 11009300
Some parts are not legal for use in California or other states with similar laws/regulations
