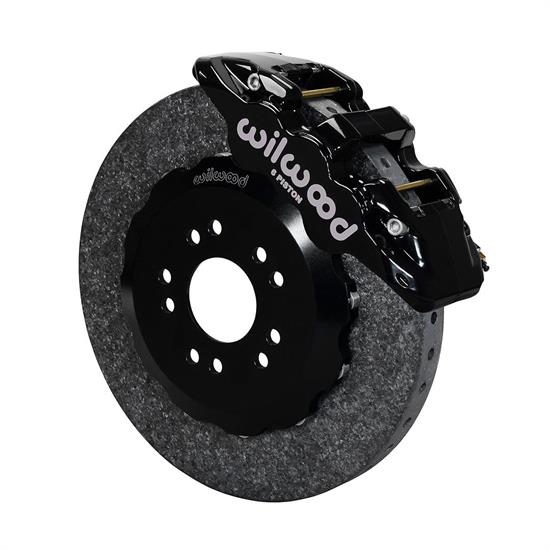

Wilwood 140-12756-CSIC AERO6 Dynamic Front Brake Kit, 2005-Up Mustang
Wilwood 140-12756-CSIC AERO6 Dynamic Front Brake Kit, 2005-Up Mustang

Wilwood 140-12756-CSIC AERO6 Dynamic Front Brake Kit, 2005-Up Mustang

Front Position, Dual: 5 on 4.5" | 4.75" Bolt Pattern, 14 Inch Rotor Diameter, Vented Rotor Type

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Wilwood 140-12756-CSIC AERO6 Dynamic Front Brake Kit, 2005-Up Mustang
Wilwood 140-12756-CSIC AERO6 Dynamic Front Brake Kit, 2005-Up Mustang
Zoomed In Image
We estimate this item will ship on or before October 29th.
Part # 83514012756CSIC
$6,218.99
each
Quantity:
Add to Cart
Call to Order
Add to Buildlist
Compare

Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Wilwood to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Position:
Front
Bolt Pattern:
Dual: 5 on 4.5" | 4.75"
Rotor Diameter:
14 Inch
Rotor Type:
Vented
Caliper Pistons:
Six
Caliper Finish:
Powder Coated
Color:
Black
MFG. Part #:
140-12756-CSIC
Rotor Thickness:
1.25"
Stud Diameter:
0.52"
Spindle Type:
Factory Disc Spindle
Mount Type:
Radial
Total Piston Area:
4.04 sq. in.
Piston Type:
Stainless
Pad Area:
11.00 sq. in.
Pad Volume:
5.2 cu. in.
Compound:
PCM
Rotor Style:
Plain Face
Caliper Type:
AERO6
Rotor Finish:
Natural
Rotor Material Type:
Carbon Ceramic
Vane Count:
24 Straight Vane
Bedded:
No
Balanced:
No
Hat Type:
Big Brake Dynamic Bobbin Mount Hat - Short Offset
Hat Finish:
Black E-Coat
Hat Bolt Circle 2:
5 x 4.75
Hat Bolt Circle 1:
5 x 4.50
Stud Diameter 2:
0.52"
Hat Material Type:
Aluminum
Hat Offset Dimension:
0.658"
GTIN Code:
889545017335

Info

AERO6 WCCD Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood's exclusive Bobbin Mounting System. AERO6 WCCD kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. W6AR calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant Quick-Silver Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00" WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood's proprietary integrated anti-rattle Bobbin Mounting System. WCCD rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

Installation Instructions (PDF)

Wheel Clearance Diagram

Application

2005 Ford Mustang Base Models
2005 Ford Mustang GT Models
2006 Ford Mustang Base Models
2006 Ford Mustang GT Models
2007 Ford Mustang All, Except Shelby GT500
2007 Ford Mustang Shelby GT500
2008 Ford Mustang All, Except Shelby GT500 & Bullit
2008 Ford Mustang Bullit
2008 Ford Mustang Shelby GT500
2009 Ford Mustang All, Except Shelby GT500
2009 Ford Mustang Shelby GT500
2010 Ford Mustang Base Models
2010 Ford Mustang GT Models
2010 Ford Mustang Shelby GT500
2011 Ford Mustang Base Models
2011 Ford Mustang GT Models w/ Performance Brakes
2011 Ford Mustang GT Models w/o Performance Brakes
2011 Ford Mustang Shelby GT500
2012 Ford Mustang Base Models
2012 Ford Mustang Boss 302
2012 Ford Mustang GT Models w/ Performance Brakes
2012 Ford Mustang GT Models w/o Performance Brakes
2012 Ford Mustang Shelby GT500
2013 Ford Mustang Base Models
2013 Ford Mustang Boss 302
2013 Ford Mustang GT Models
Some parts are not legal for use in California or other states with similar laws/regulations
